PTF 0,3/ 4-BB-10-H

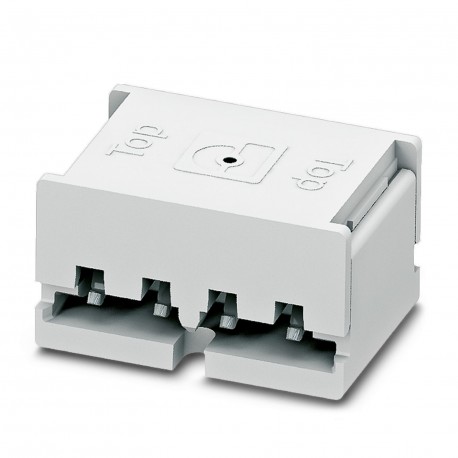

PTF 0,3/ 4-BB-10-H 1707563 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3637 in stock
Key Specifications
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Pitch:2.4 mm
Amplitude:0.35 mm (10 Hz ... 60.1 Hz)
Frequency:10 - 500 - 10 Hz
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch | 2.4 mm |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 500 - 10 Hz |
| Width [w] | 11.2 mm |
| Height [h] | 4.8 mm |
| Length [l] | 8 mm |
| Sweep speed | 1 octave/min |
| Temperature | 650 °C |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Product line | COMBICON Connectors Special |
| Product type | PCB direct plug |
| Mounting type | Direct plug-in method |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Number of rows | 1 |
| Product family | PTF 0,3/..-BB-H |
| Color (Housing) | white (9010) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 01 |
| Contact material | Cu alloy |
| Time of exposure | 30 s |
| Type of packaging | packed in cardboard |
| Nominal voltage UN | < 25 V |
| Dimensional drawing | |
| Insulating material | PBT |
| Number of positions | 4 |
| Number of potentials | 4 |
| Number of connections | 4 |
| Rated voltage (III/2) | 25 V |
| Rated voltage (III/3) | 25 V |
| Test duration per axis | 2 h |
| Surface characteristics | hot-dip tin-plated |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 275 |
| Ambient temperature (operation) | -30 °C ... 100 °C (dependent on the derating curve) |
| Rated insulation voltage (III/2) | 25 V |
| Rated insulation voltage (III/3) | 25 V |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
| Insulation resistance, neighboring positions | > 1 MΩ |
Product Description
Direct connector for printed circuit board, nominal section: 0.34 mm², color: white, nominal voltage (III/2): 25 V, contact surface: Tin, contact connection type: Female, number of potentials: 4, numb
