PT-45B

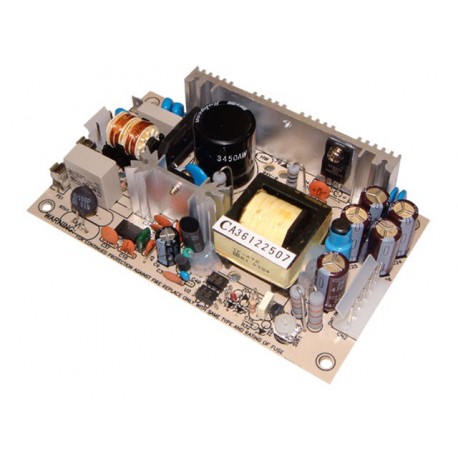

PT-45B MEANWELL AC-DC Triple output Open frame power supply, Output 5VDC / 5A +12VDC / 2.5A -12VDC / 0.5A
$14.46USD
740 in stock
Key Specifications
Name:PT-45B
Stock:Yes
Format:Open Format
Series:PT-45
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PT-45B |
| Stock | Yes |
| Format | Open Format |
| Series | PT-45 |
| Output 1 | -12 |
| Output 2 | +5 |
| Output 3 | +12 |
| Approvals | CE, UL |
| Power (W) | 42,60 |
| Subformato | 4.2"x2.4" |
| Width (mm) | 76.00 |
| Height (mm) | 28.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | Fifty two |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 127.00 |
| Long Description | Power supply in an Open Format with 3 outputs.Open format (Open-Frame).Range universal Input full90-264vac47-63Hz.Outputs:-12vdc:Minimum intensity of output0A.Maximum output current0,3Amps.+5vdc:Minimum intensity of output0.4 To.Maximum output currentFiveAmps.+12vdc:Minimum intensity of output0.2 To.Maximum output current2,5Amps.Power:42,6 W.Maximum power with fan external 18CFM of 72W.Efficiency typical:75%.Consumption without load<0.5 W.Working temperature: from-Tenup+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76 x 28.2 years of warranty.Manufacturer: MEAN WELL.These sources need to have always the minimum load shown for each output. If we don't have that minimum load, the output will be unstable or the source may not come to light. You can connect a load resistance to ensure that you always have the minimum load.Check that all the outputs do not exceed the maximum output of the power supply. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an Open Format with 3 outputs.
