PT 2-IT-230AC-ST

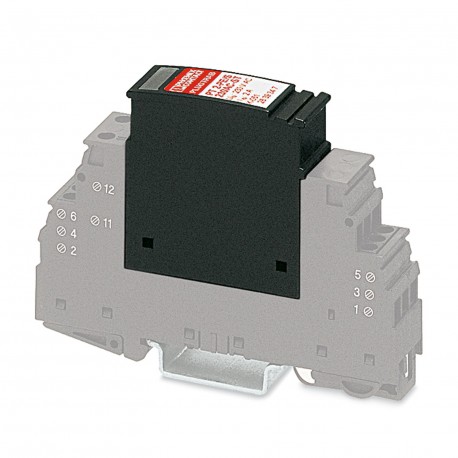

PT 2-IT-230AC-ST 2805127 PHOENIX CONTACT Type 3 surge protection plug
$0.00USD
4404 in stock
Key Specifications
:T3
Note:2005
Type:Male
Depth:52 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| T3 | |
| Note | 2005 |
| Type | Male |
| Depth | 52 mm |
| Width | 17.7 mm |
| Height | 45 mm |
| EN type | T3 |
| Product type | Device protection |
| Mounting type | on base element |
| Horizontal pitch | 1 Div. |
| Housing material | PA |
| Dimensional drawing | |
| Direction of action | 1L-N & N-PE |
| Number of positions | 2 |
| Degree of protection | IP20 |
| Nominal frequency fN | 50 Hz |
| Residual current IPE | ≤ 1 µA |
| Complete module depth | 65.5 mm |
| Complete module width | 17.7 mm |
| Response time tA(L-N) | ≤ 25 ns |
| Standards/regulations | IEC 60664-1 / IEC 61643-1 / DIN EN 61643-11/A11 |
| Complete module height | 90 mm |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| IEC test classification | III |
| Standards/specifications | IEC 61643-1 |
| Max. required back-up fuse | 25 A (gL/C) |
| Energy absorption symmetrical | 170 J (L-N) |
| Maximum continuous voltage UC | 275 V AC |
| Enery absorption, asymmetrical | 225 J (L/N-PE) |
| Surge protection fault message | optical |
| Ambient temperature (operation) | -40 °C ... 75 °C |
| Voltage protection level Up(L-N) | ≤ 1.2 kV |
| Voltage protection level Up(L-PE) | ≤ 1.5 kV |
| Voltage protection level Up(N-PE) | ≤ 1.5 kV |
| Flammability rating according to UL 94 | V0 |
| Nominal discharge current In(8/20) µs | 3 kA |
| Maximum discharge current Imax(8/20) µs | 8 kA |
| Maximum continuous operating voltage UC(L-N) | 275 V AC |
| Nominal discharge current In(8/20) µs (L-N) | 3 kA |
| Maximum continuous operating voltage UC(L-PE) | 275 V AC |
| Maximum continuous operating voltage UC(N-PE) | 275 V AC |
| Nominal discharge current In(8/20) µs (L-PE) | 3 kA |
Product Description
Surge protection plug for base element, as device protection for termination devices in IT systems, error indication in the connector. Design: 230 V AC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
