PST 1,0/11-3,5

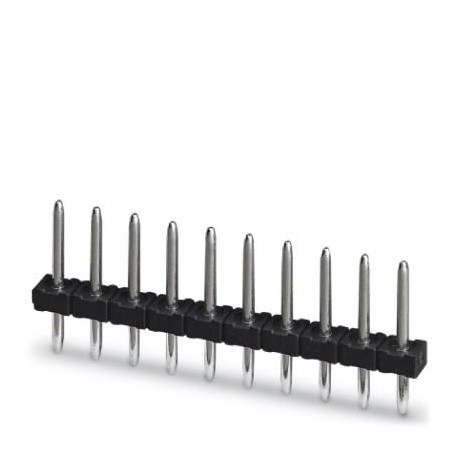

PST 1,0/11-3,5 1945180 PHOENIX CONTACT Pin strip
$0.00USD
3009 in stock
Key Specifications
GTIN:4017918883355
Orderkey:1945180
(General):CUL
Catalog page:Page 432 (C-1-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918883355 |
| Orderkey | 1945180 |
| (General) | CUL |
| Catalog page | Page 432 (C-1-2013) |
| Packing unit | 100 pc |
| Country of origin | DE (Germany) |
| Color (Dimensions) | black |
| Custom tariff number | 85366930 |
| Minimum order quantity | 100 pc |
| Pitch (Key Commercial Data) | 3.5 mm |
| Width (Key Commercial Data) | 38.1 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 9.2 mm |
| Length (Key Commercial Data) | 2.8 mm |
| Range of articles (Dimensions) | PST 1,0/..-V |
| Nominal current IN (Dimensions) | 8 A (depends on the plug used) |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 11 |
| Dimension a (Key Commercial Data) | 35 mm |
| Maximum load current (Dimensions) | 8 A (depends on the plug used) |
| Rated voltage (II/2) (Dimensions) | 250 V |
| Width [ w ] (Key Commercial Data) | 38.1 mm |
| Height [ h ] (Key Commercial Data) | 13 mm |
| Length [ l ] (Key Commercial Data) | 2.8 mm |
| Rated voltage (III/2) (Dimensions) | 250 V |
| Rated voltage (III/3) (Dimensions) | 160 V |
| Pin dimensions (Key Commercial Data) | ø 1 mm |
| Weight per Piece (excluding packing) | 1.260 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 3.8 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Male connector, nominal section: 0.5 mm², color: black, nominal current: 8 A (Depending on the connector used), nominal voltage (III/2): 250 V, contact surface: Tin, contact type: Male, number of pote
