PSR-SCP-24DC/SIM4

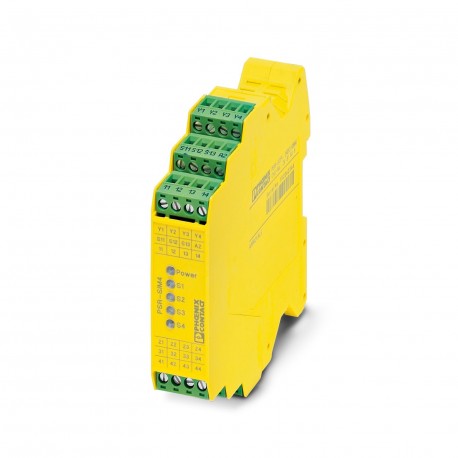

PSR-SCP- 24DC/SIM4 2981936 PHOENIX CONTACT Safety relays
$0.00USD
4599 in stock
Key Specifications
Depth:106 mm
Width:22.5 mm
Height:99 mm
pluggable:yes
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 106 mm |
| Width | 22.5 mm |
| Height | 99 mm |
| pluggable | yes |
| Product type | Interface module |
| Screw thread | M3 |
| Assembly note | in rows with zero spacing |
| Product family | PSRclassic |
| Status display | LED (green) |
| Article revision | 03 |
| Housing material | Polyamide |
| Maximum altitude | max. 2000 m (Above sea level) |
| Stripping length | 7 mm |
| Connection method | Screw connection |
| Mounting position | any |
| Note on application | Only for industrial use |
| Rated surge voltage | 0.8 kV |
| Degree of protection | IP20 |
| Standards/regulations | DIN EN 50178 |
| Nominal operating mode | 100% operating factor |
| Status display present | Yes |
| Max. permissible current | 100 mA (per signal output) |
| Nominal input voltage UN | 24 V DC (from PSR) |
| Rated insulation voltage | 50 V DC |
| Conductor cross-section AWG | 24 ... 12 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Max. permissible total current | 100 mA (alarm outputs) |
| Ambient temperature (operation) | -20 °C ... 55 °C |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Input voltage range in reference to UN | 0.85 ... 1.1 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Product Description
Interface module for connection of various sensors or safety switches with closed/open contacts to the PSR-SDC4 safety relay, with screw connection
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
