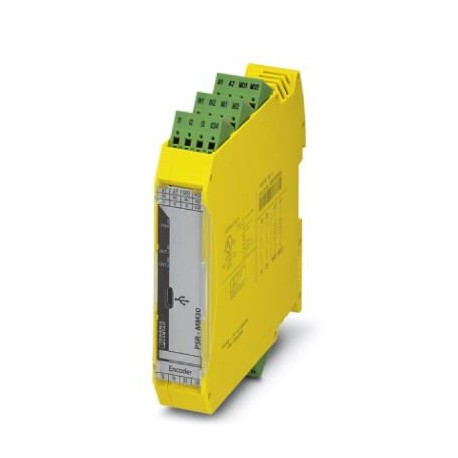

PSR-MM30-2NO-2DO-24DC-SP
PSR-MM30-2NO-2DO-24DC-SP 2702358 PHOENIX CONTACT Two-channel zero-speed and over-speed safety relays up to S..
$0.00USD
4987 in stock
Key Specifications
GTIN:4055626133232
Orderkey:2702358
(Drawings):
Catalog page:Page 243 (C-6-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626133232 |
| Orderkey | 2702358 |
| (Drawings) | |
| Catalog page | Page 243 (C-6-2019) |
| Depth (Note) | 114.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 22.5 mm |
| Height (Note) | 117.5 mm |
| (Power supply) | 2.5 s (MI1, MI2) |
| (Alarm outputs) | < 150 ms (For Usmanual, monitored start) |
| UNSPSC 11 (ETIM) | 39121501 |
| (Digital inputs) | 2.5 V DC ... 5 V DC (High) |
| Country of origin | DE (Germany) |
| ETIM 3.0 (eCl@ss) | EC001449 |
| ETIM 4.0 (eCl@ss) | EC001449 |
| ETIM 5.0 (eCl@ss) | EC001448 |
| ETIM 6.0 (eCl@ss) | EC001448 |
| ETIM 7.0 (eCl@ss) | EC001448 |
| Net weight (Times) | 190.9 g |
| Relay type (Times) | Electromechanical relay with forcibly guided contacts in accordance with IEC/EN 61810-3 (EN 50205) |
| UNSPSC 13.2 (ETIM) | 39122331 |
| UNSPSC 18.0 (ETIM) | 39122331 |
| UNSPSC 19.0 (ETIM) | 39122331 |
| UNSPSC 20.0 (ETIM) | 39122331 |
| UNSPSC 21.0 (ETIM) | 39122331 |
| UNSPSC 6.01 (ETIM) | 30211901 |
| (Measuring inputs) | 5 A (250 V (AC15)) |
| UNSPSC 12.01 (ETIM) | 39121501 |
| pluggable (General) | Yes |
| Custom tariff number | 90328900 |
| UNSPSC 7.0901 (ETIM) | 39121501 |
| Housing color (Times) | yellow |
| Mounting type (Times) | DIN rail mounting |
| Status display (Times) | 2x LED green (OUT1, OUT2) |
| Housing material (Times) | PBT |
| Input name (Power supply) | Operating mode and monitoring inputs |
| Mounting position (Times) | vertical or horizontal |
| Category (Connection data) | 4 |
| Filter time (Power supply) | max. 2 ms (Test pulse width; low test pulses for operating mode and monitoring inputs) |
| Precision (Digital inputs) | ± 2 % (in reference to the parameterized limit value) |
| Stripping length (General) | 8 mm |
| Connection method (General) | Push-in connection |
| Input name (Digital inputs) | Encoder input |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Degree of protection (Times) | IP20 |
| Restart time (Alarm outputs) | < 1 s (Boot time) |
| eCl@ss 4.0 (Classifications) | 27371102 |
| eCl@ss 4.1 (Classifications) | 27371102 |
| eCl@ss 5.0 (Classifications) | 27371901 |
| eCl@ss 5.1 (Classifications) | 27371901 |
| eCl@ss 6.0 (Classifications) | 27371800 |
| eCl@ss 7.0 (Classifications) | 27371811 |
| eCl@ss 8.0 (Classifications) | 27371811 |
| eCl@ss 9.0 (Classifications) | 27371811 |
| Assembly instructions (Times) | See derating curve |
| Designation (Connection data) | EN 62061 |
| Inrush current (Power supply) | < 5 mA |
| Maximum altitude (Dimensions) | ≤ 2000 m (Above sea level) |
| Recovery time (Alarm outputs) | < 1 s |
| Nominal operating mode (Times) | 100% operating factor |
| Output fuse (Measuring inputs) | 6 A gL/gG |
| Output name (Measuring inputs) | Enabling current path |
| Contact type (Measuring inputs) | 2 enabling current paths |
| Discrepancy time (Power supply) | 2 s (I1, I2, I3) |
| Inrush current (Digital inputs) | < 12 mA |
| Number of inputs (Power supply) | 1 (Non-safety-related start input: S34) |
| Stop category (Connection data) | 0 |
| Delay time range (Alarm outputs) | 0 s ... 10 s ±10 % (Adjustable switch-on delay for downtime contacts 23/24) |
| Designation (Ambient conditions) | A1/A2 |
| Filter time (Ambient conditions) | 2 ms (at A1 in the event of voltage dips at Us) |
| HTL signal form (Digital inputs) | 0 V DC ... 3 V DC (Low) |
| Limit frequency (Digital inputs) | max. 400 kHz |
| TTL signal form (Digital inputs) | 0 V DC ... 0.9 V DC (Low) |
| Inrush current (Measuring inputs) | min. 3 mA |
| Number of inputs (Digital inputs) | 1 (Safety-related encoder input, RJ45) |
| Operating voltage display (Times) | 1 x green LED (PWR) |
| Current consumption (Power supply) | typ. 4 mA (at US) |
| Utilization restriction (Drawings) | EMC: class A product, see manufacturer's declaration in the download area |
| Contact material (Measuring inputs) | AgSnO2 |
| Inrush current (Ambient conditions) | < 18 A (Δt = 500 µs at Us) |
| Protective circuit (Digital inputs) | 33 V suppressor diode |
| Current consumption (Digital inputs) | < 3 mA (Per track for US) |
| Number of outputs (Measuring inputs) | 2 (safety-related N/O contacts: 13/14, 23/24) |
| Sq. Total current (Measuring inputs) | 72 A2(observe derating) |
| Switching voltage (Measuring inputs) | min. 12 V AC/DC |
| Weight per Piece (excluding packing) | 0.000 g |
| (Safety-related characteristic data) | Safe isolation, reinforced insulation 6 kV between input circuit (A1/A2, I1, I2, I3, MI1, MI2, IN1, IN2, S34, MO1, MO2, RJ45, USB) and the enabling current paths (13/14, 23/24) |
| Output description (Measuring inputs) | 2 NO contacts each in series, without delay, floating |
| Switching capacity (Measuring inputs) | min. 60 mW |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Switching frequency (Measuring inputs) | max. 0.5 Hz |
| Description of the input (Power supply) | NPN, IEC 61131-2, type 1 |
| Protective circuit (Ambient conditions) | Serial protection against polarity reversal 33 V suppressor diode |
| Performance level (PL) (Connection data) | e (6 A DC1, 17520 switching cycles/year) |
| Sine/cosine signal form (Digital inputs) | 2 V DC ... 3 V DC (1 Vppdifferential signal) |
| Description of the input (Digital inputs) | TTL, HTL, Sin/Cos |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 24 |
| Mechanical service life (Measuring inputs) | 10x 106cycles |
| Shock (Safety-related characteristic data) | 15g |
| Protective circuit/component (Power supply) | 33 V suppressor diode |
| Typical response time at US (Alarm outputs) | < 200 ms (For Usautostart) |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 55 °C (observe derating) |
| Conductor cross section solid max. (General) | 1.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Power consumption at US (Ambient conditions) | typ. 1.78 W |
| Input current range "0" signal (Power supply) | 0 mA ... 1.5 mA |
| Input voltage range "0" signal (Power supply) | 0 V DC ... 5 V DC |
| Input voltage range "1" signal (Power supply) | 15 V DC ... 30 V DC |
| Current (Relay outputs: enabling current path) | max. 100 mA |
| Limiting continuous current (Measuring inputs) | 6 A |
| Safety Integrity Level (SIL) (Connection data) | 3 |
| Voltage (Relay outputs: enabling current path) | approx. 22 V DC (Us- 2 V) |
| Conductor cross section flexible max. (General) | 1.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Input current range "0" signal (Digital inputs) | 0 mA ... 1.5 mA |
| Input voltage range "0" signal (Digital inputs) | 0 V DC ... 5 V DC |
| Input voltage range "1" signal (Digital inputs) | 15 V DC ... 30 V DC |
| Designation (Safety-related characteristic data) | Air clearances and creepage distances between the power circuits |
| Min. degree of protection of inst. location (Times) | IP54 |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 70 °C |
| Rated control supply current IS (Ambient conditions) | typ. 74 mA |
| Degree of pollution (Safety-related characteristic data) | 2 |
| Number of outputs (Relay outputs: enabling current path) | 2 (Non-safety-related signal outputs: MO1, MO2) |
| Output description (Relay outputs: enabling current path) | PNP |
| Overvoltage category (Safety-related characteristic data) | III |
| Max. permissible humidity (storage/transport) (Dimensions) | 75 % (on average, 85% infrequently, non-condensing) |
| Standards/regulations (Safety-related characteristic data) | DIN EN 50178, EN 60947-5-1 |
| Vibration (operation) (Safety-related characteristic data) | 10 Hz ... 150 Hz, 2g |
| Max. permissible relative humidity (operation) (Dimensions) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible overall conductor resistance (Power supply) | 150 Ω |
| Rated control circuit supply voltage US (Ambient conditions) | 24 V DC -15 % / +10 % |
| Maximum inrush current (Relay outputs: enabling current path) | 500 mA (Δt = 1 ms at Us) |
| Rated insulation voltage (Safety-related characteristic data) | 250 V AC |
| Safety Integrity Level Claim Limit (SIL CL) (Connection data) | 3 |
| Max. permissible overall conductor resistance (Digital inputs) | 150 Ω |
| Short-circuit protection (Relay outputs: enabling current path) | no |
| Switching capacity according to IEC 60947-5-1 (Measuring inputs) | 4 A (24 V (DC13)) |
| Protective circuit/component (Relay outputs: enabling current path) | 33 V suppressor diode |
| Rated surge voltage/insulation (Safety-related characteristic data) | Basic insulation 4 kV between all current paths and housing |
Product Description
2-channel speed and stop controller up to SIL 3, category 4, PL e, 2 safe relay outputs, suitable for connection of HTL, TTL or Sen/Cos encoders as well as proximity detectors, plug-in push-in termina
