PSR-MM25-1NO-2DO-24DC-SP

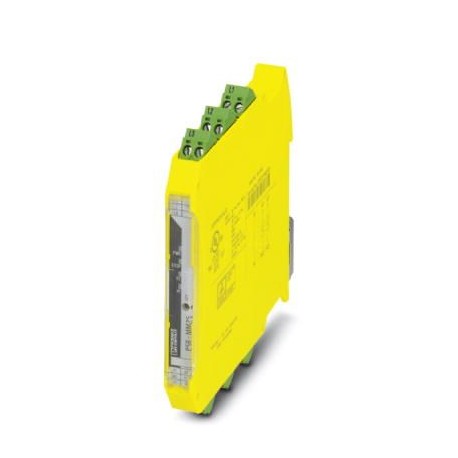

PSR-MM25-1NO-2DO-24DC-SP 2702356 PHOENIX CONTACT Safety device
$0.00USD
4702 in stock
Key Specifications
GTIN:4055626133218
Orderkey:2702356
Catalog page:Page 276 (C-6-2017)
Depth (Note):114.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626133218 |
| Orderkey | 2702356 |
| Catalog page | Page 276 (C-6-2017) |
| Depth (Note) | 114.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 12.5 mm |
| Height (Note) | 116.6 mm |
| Country of origin | DE (Germany) |
| Net weight (Times) | 146.7 g |
| (Measuring inputs) | max. 5 A |
| pluggable (General) | Yes |
| Custom tariff number | 85389091 |
| (Ambient conditions) | Protection against polarity reversal for rated control circuit supply voltage |
| Housing color (Times) | yellow |
| Mounting type (Times) | DIN rail mounting |
| Status display (Times) | 4 x LED Bi-Colour |
| Housing material (Times) | PBT |
| Mounting position (Times) | vertical or horizontal |
| Category (Connection data) | 3 |
| Stripping length (General) | 8 mm |
| Connection method (General) | Spring-cage connection |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Degree of protection (Times) | IP20 |
| Assembly instructions (Times) | See derating curve |
| Designation (Connection data) | EN 62061 |
| Maximum altitude (Dimensions) | max. 2000 m (Above sea level) |
| Response time (Alarm outputs) | typ. 20 ms (at 50 Hz input frequency) |
| Limit frequency (Power supply) | max. 3 kHz (At voltages > 2 VRMS) |
| Nominal operating mode (Times) | 100% operating factor |
| Output fuse (Measuring inputs) | 5 A gL/gG |
| Output name (Measuring inputs) | Enabling current path |
| Contact type (Measuring inputs) | 1 enabling current path |
| Stop category (Connection data) | 0 |
| Delay time range (Alarm outputs) | 0.5 s ... 20 s ±1 % (K1, K2 can be parameterized) |
| Filter time (Ambient conditions) | 1 ms (at A1 in the event of voltage dips at Us) |
| Inrush current (Measuring inputs) | min. 3 mA |
| Current consumption (Power supply) | max. 0.35 mA (at L1/L2/L3) |
| Contact material (Measuring inputs) | AgSnO2 |
| Inrush current (Ambient conditions) | 5.6 A (Δt = 400 µs at Us) |
| Voltage input signal (Power supply) | max. 690 V AC/DC (at L1/L2/L3) |
| Number of outputs (Measuring inputs) | 1 (undelayed) |
| Sq. Total current (Measuring inputs) | 25 A2(observe derating) |
| Switching voltage (Measuring inputs) | min. 24 V AC/DC |
| Weight per Piece (excluding packing) | 146.700 g |
| (Safety-related characteristic data) | Safe isolation, reinforced insulation 6 kV:between A1/A2 and 13/14between MO/FO and 13/14Safe isolation, reinforced insulation 8 kV:between L1/L2/L3 and A1/A2between L1/L2/L3 and MO/FObetween L1/L2/L3 and 13/14 |
| Output description (Measuring inputs) | safety-related N/O contacts |
| Switching capacity (Measuring inputs) | min. 72 mW |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Switching frequency (Measuring inputs) | max. 0.5 Hz |
| Protective circuit (Ambient conditions) | Surge protection Suppressor diode |
| Performance level (PL) (Connection data) | e (4 A DC13; 5 A AC15; 17520 switching cycles/year) |
| Typical pickup time at US (Alarm outputs) | < 1 s |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 24 |
| Mechanical service life (Measuring inputs) | 10x 106cycles |
| Shock (Safety-related characteristic data) | 15g |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 55 °C (observe derating) |
| Conductor cross section solid max. (General) | 1.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Power consumption at US (Ambient conditions) | typ. 1.2 W |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Current (Relay outputs: enabling current path) | max. 100 mA |
| Limiting continuous current (Measuring inputs) | 5 A (observe derating) |
| Safety Integrity Level (SIL) (Connection data) | 3 (4 A DC13; 5 A AC15; 17520 switching cycles/year) |
| Voltage (Relay outputs: enabling current path) | 23 V DC (US- 1 V) |
| Conductor cross section flexible max. (General) | 1.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Conformance (Safety-related characteristic data) | CE-compliant |
| Designation (Safety-related characteristic data) | Air clearances and creepage distances between the power circuits |
| Min. degree of protection of inst. location (Times) | IP54 |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Rated control supply current IS (Ambient conditions) | typ. 50 mA |
| Degree of pollution (Safety-related characteristic data) | 2 |
| Number of outputs (Relay outputs: enabling current path) | 2 (digital, PNP) |
| Overvoltage category (Safety-related characteristic data) | III |
| Max. permissible humidity (storage/transport) (Dimensions) | 75 % (on average, 85% infrequently, non-condensing) |
| Standards/regulations (Safety-related characteristic data) | DIN EN 50178 |
| Vibration (operation) (Safety-related characteristic data) | 10 Hz ...150 Hz, 2g |
| Max. permissible relative humidity (operation) (Dimensions) | 75 % (on average, 85% infrequently, non-condensing) |
| Rated control circuit supply voltage US (Ambient conditions) | 24 V DC -15 % / +10 % |
| Maximum inrush current (Relay outputs: enabling current path) | 500 mA |
| Rated insulation voltage (Safety-related characteristic data) | 250 V AC |
| Safety Integrity Level Claim Limit (SIL CL) (Connection data) | 3 (4 A DC13; 5 A AC15; 17520 switching cycles/year) |
| Short-circuit protection (Relay outputs: enabling current path) | Yes |
| Rated surge voltage/insulation (Safety-related characteristic data) | Basic insulation 4 kV:between all current paths and housingBasic insulation 8 kV:between L1 and L2between L1 and L3between L2 and L3 |
Product Description
Safety switching device for sensor-free stop control in three-phase and single-phase motors up to SIL 3, category 3, PL e, two-channel evaluation of the recall voltage of alternating, three-phase and
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
