PSM-ME-REP LON485-P

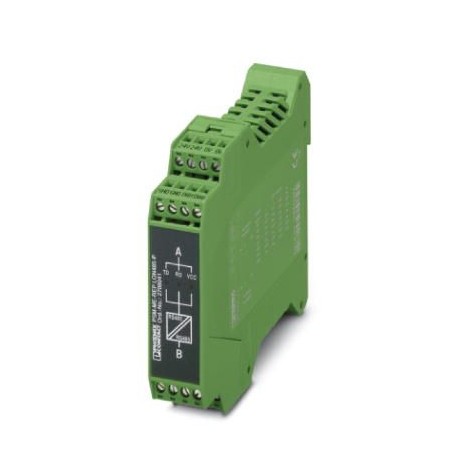

PSM-ME-REP LON485-P 2708041 PHOENIX CONTACT Repeater
$0.00USD
4734 in stock
Key Specifications
GTIN:4017918907570
Orderkey:2708041
Depth (Note):114.5 mm
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918907570 |
| Orderkey | 2708041 |
| Depth (Note) | 114.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 22.5 mm |
| Height (Note) | 99 mm |
| Caption (Note) | Slim design |
| Country of origin | DE (Germany) |
| (Serial interface) | Class I, Zone 2, Ex nA IIC T4 Gc X |
| Custom tariff number | 85176200 |
| (Ambient conditions) | Class I, Zone 2, Ex nA IIC T4 Gc X |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| ATEX (Serial interface) | II 3 G Ex nA IIC T4 Gc |
| IECEx (Serial interface) | Ex nA IIC T4 Gc |
| ATEX (Ambient conditions) | II 3 G Ex nA IIC T4 Gc (Please follow the special installation instructions in the documentation!) |
| MTTF (Ambient conditions) | 1808 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| Signal (Serial interface) | ± 2 kV |
| Color (Ambient conditions) | green |
| Dimensional drawing (Note) | |
| IECEx (Ambient conditions) | Ex nA IIC T4 Gc |
| Interface 1 (Power supply) | RS-485 interface in acc. with EIA/TIA-485, DIN 66259-4 |
| Interface 2 (Power supply) | RS-485 interface in acc. with EIA/TIA-485, DIN 66259-4 |
| Comments (Serial interface) | Criterion B |
| Noise immunity (Dimensions) | EN 61000-6-2:2005 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Operating mode (Power supply) | Semi-duplex |
| Conformance (Serial interface) | CE-compliant |
| Net weight (Ambient conditions) | 188.8 g |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | Pluggable screw connection |
| Nominal supply voltage (General) | 24 V AC/DC ±20 % |
| Degree of protection (Dimensions) | IP20 |
| File format/coding (Power supply) | Manchester, slip-tolerant |
| Noise emission (Serial interface) | EN 50 081-1 |
| Noise immunity (Serial interface) | EN 61000-6-2:2005 |
| UL, USA/Canada (Serial interface) | 508 recognized |
| Frequency range (Serial interface) | 0.15 MHz ... 80 MHz |
| Max. current consumption (General) | 100 mA |
| Transmission length (Power supply) | ≤ 1200 m (depends on transmission speed, bus system and cable type) |
| Transmission medium (Power supply) | 2-wire twisted pair, shielded |
| Bit distortion (Ambient conditions) | < 1.5 % (applies to device: Distortions caused by system-specific cables are not accounted for) |
| Noise emission (Ambient conditions) | EN 50 081-1 |
| Noxious gas test (Serial interface) | ISA-S71.04-1985 G3 Harsh Group A |
| Termination resistor (Power supply) | 120 Ω |
| UL, USA/Canada (Ambient conditions) | 508 recognized |
| Contact discharge (Serial interface) | ± 6 kV (Test Level 3) |
| Weight per Piece (excluding packing) | 188.800 g |
| Housing material (Ambient conditions) | PA |
| Typical current consumption (General) | 90 mA (24 V DC) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Data direction switching (Power supply) | Automatic control |
| Degree of pollution (Ambient conditions) | 2 |
| Serial transmission speed (Power supply) | 39.1/ 78.1/ 500/ 625/ 1000/ 1250/ 2000 kbps |
| Standards/regulations (Serial interface) | EN 55011 |
| Electrical isolation (Ambient conditions) | VCC // RS-485 (A) // RS-485 (B) |
| Transmission channels (Ambient conditions) | 2 (1/1), RxD, TxD, full duplex |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section AWG max. (Power supply) | 14 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Electromagnetic compatibility (Serial interface) | Conformance with EMC Directive 2014/30/EU |
| Test voltage data interfaces (Ambient conditions) | 2 kV AC |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| Connection in acc. with standard (Serial interface) | CUL |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Test voltage data interface/power supply (Ambient conditions) | 2 kV AC |
Product Description
Repeater, for galvanic separation and range increase in RS-485 2-wire LON bus systems, 3-way separation, for rail mounting
