PSG240E24RM

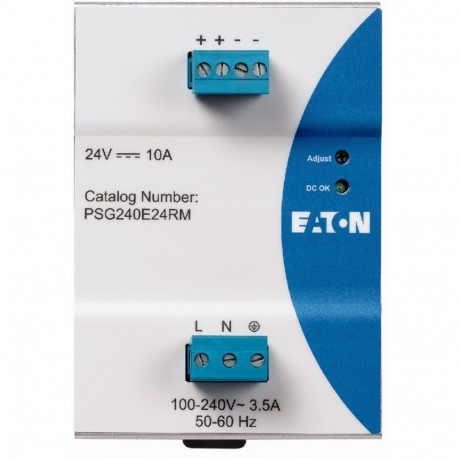

PSG240E24RM 172893 Y7-172893 EATON ELECTRIC PSG240E24RM Power supply unit, 1-phase, 100-240VAC/24VDC, 10A
$0.00USD
3179 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):160 mm
Width (EF000008):135 mm
Height (EF000040):145 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 160 mm |
| Width (EF000008) | 135 mm |
| Height (EF000040) | 145 mm |
| Stabilized (EF005302) | Yes |
| Power output (EF003034) | 240 W |
| Built-in width (EF000846) | 85 mm |
| Built-in height (EF000332) | 121 mm |
| Modular version (EF001126) | Yes |
| Power consumption (EF000346) | 299 VA |
| Short-circuit-proof (EF007332) | Yes |
| Max. output current 1 (EF008284) | 10 A |
| Max. output current 2 (EF008285) | 0 A |
| Max. output current 3 (EF008286) | 0 A |
| Wall mounting possible (EF003973) | No |
| Rated supply voltage DC (EF007078) | 0 V |
| Direct mounting possible (EF005689) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Output voltage stabilized (EF003092) | Yes |
| SIL according to IEC 61508 (EF009889) | None |
| Suitable for rail mounting (EF003972) | Yes |
| Degree of protection (NEMA) (EF011959) | 1 |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 24 V |
| 2nd secondary output voltage (EF006797) | 0 V |
| 3rd secondary output voltage (EF006800) | 0 V |
| Secondary voltage adjustable (EF007002) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 85 V |
| Rated supply voltage AC 60 Hz (EF007077) | 85 V |
| Suitable for safety functions (EF001597) | No |
| Voltage type (supply voltage) (EF002991) | AC |
| Nominal value output current 1 (EF009396) | 10 A |
| Nominal value output current 2 (EF009397) | 0 A |
| Nominal value output current 3 (EF009398) | 0 A |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output voltage 2 (EF009394) | 0 V |
| Nominal value output voltage 3 (EF009395) | 0 V |
| Width in number of modular spacings (EF002950) | 0 |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
Product Description
PSG240E24RM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
