PSE370-600-70

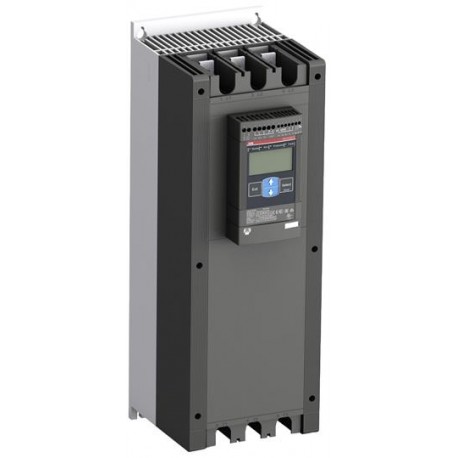

PSE370-600-70 1SFA897115R7000 ABB Soft Starter 230V/90kW, 400V/160kW, 500V/200kW, 300A
$0.00USD
4487 in stock
Key Specifications
Customs Tariff Number::85044090
Minimum Order Quantity::1 piece
Ramp Time: (Dimensions):During Start 1 ... 30 second [unit of time]During Stop 0 ... 30 second [unit of time]
RoHS Status: (Technical):Following EU Directive 2002/95/EC August 18, 2005 and amendment
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Customs Tariff Number: | 85044090 |
| Minimum Order Quantity: | 1 piece |
| Ramp Time: (Dimensions) | During Start 1 ... 30 second [unit of time]During Stop 0 ... 30 second [unit of time] |
| RoHS Status: (Technical) | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Communication: (Dimensions) | FiledBusPlug(Optional) |
| Terminal Type: (Dimensions) | Main Circuit: Bars |
| Analog Outputs: (Dimensions) | 4…20 mA |
| Run Signal Relay: (Dimensions) | Yes |
| ETIM 4: (Container Information) | EC002572 - Electronic motor control and protection device |
| ETIM 5: (Container Information) | EC002572 - Electronic motor control and protection device |
| Product Main Type: (Dimensions) | PSE370 |
| Tightening Torque: (Dimensions) | Main Circuit 28 N·mSupply Circuit 0.5 N·mControl Circuit 0.5 N·m |
| Fault Signal Relay: (Dimensions) | Yes |
| E-nummer: (Container Information) | 3302124 |
| Overload Protection: (Dimensions) | Build-in electronic overload protection |
| Rated Frequency (f): (Dimensions) | Main Circuit 50/60 HzControl Supply 50/60 Hz |
| RoHS Information: (Environmental) | 1SFC132043D0201 |
| By-pass Signal Relay: (Dimensions) | Yes |
| Degree of Protection: (Dimensions) | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Overload Signal Relay: (Dimensions) | Yes |
| Ambient Air Temperature: (Technical) | Storage -40 ... +70 °COperation -25 ... +60 °C |
| Current Limit Function: (Dimensions) | 1.5 … 7xIe |
| Instructions and Manuals: (Ordering) | 1SFC132057M0201 |
| Product Net Width: (Popular Downloads) | 190.000 mm |
| Product Net Height: (Popular Downloads) | 550.000 mm |
| Product Net Weight: (Popular Downloads) | 13.9 kg |
| Rated Operational Voltage: (Dimensions) | Main Circuit 208 ... 600 V AC |
| Service Factor Percentage: (Dimensions) | 100 % |
| Instructions and Manuals: (Environmental) | 1SFC132057M0201 |
| Environmental Information: (Environmental) | 1SFC132042D0201 |
| Initial Voltage During Start: (Dimensions) | 30 ... 70 % |
| Signal indication fault (LED): (Dimensions) | Red |
| Integrated Electronic Overload: (Dimensions) | Yes |
| Step Down Voltage Special Ramp: (Dimensions) | No % |
| Data Sheet, Technical Information: (Ordering) | 1SFC132005C0201 |
| Connecting Capacity Main Circuit: (Dimensions) | Hole Diameter 10.2 mmWidth and Thickness 20x5 mm |
| Adjustable Rated Motor Current Ie: (Dimensions) | 30 ... 100 % |
| Declaration of Conformity - CE: (Environmental) | 2CMT003496 |
| Product Net Depth / Length: (Popular Downloads) | 236.500 mm |
| Rated Control Supply Voltage (Us): (Dimensions) | 100 ... 250 V AC |
| Signal indication running R (LED): (Dimensions) | Green |
| Connecting Capacity Supply Circuit: (Dimensions) | Rigid 1x2.5 mm²Rigid 2x1.5 mm² |
| Rated Control Circuit Voltage (Uc): (Dimensions) | DC Operation 24 V |
| Signal indication protection (LED): (Dimensions) | Yellow |
| Switch for Inside Delta Connection: (Dimensions) | No |
| Connecting Capacity Control Circuit: (Dimensions) | Rigid 1x2.5 mm²Rigid 2x1.5 mm² |
| Object Classification Code: (Container Information) | Q |
| Signal indication ramping up/down (LED): (Dimensions) | Green |
| Signal indication completed start ramp (LED): (Dimensions) | Green |
| Starting Capacity at Maximum Rated Current Ie: (Dimensions) | 4xIe for 10s |
| Rated Operational Power - In-Line Connection (Pe): (Dimensions) | (230 V) 110 kW(400 V) 200 kW(500 V) 250 kW |
| Signal indication ready to start/standby ON (LED): (Dimensions) | Green |
| Rated Operational Current - In-Line Connection (Ie): (Dimensions) | 370 A |
| Package Level 1 EAN: (Certificates and Declarations (Document Number)) | 7320500400739 |
| Package Level 1 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Width: (Certificates and Declarations (Document Number)) | 260 mm |
| Package Level 2 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Height: (Certificates and Declarations (Document Number)) | 310 mm |
| Package Level 1 Gross Weight: (Certificates and Declarations (Document Number)) | 14.7 kg |
| Package Level 1 Depth / Length: (Certificates and Declarations (Document Number)) | 600 mm |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: (Dimensions) | 10 |
