PSD-S OE FL RD

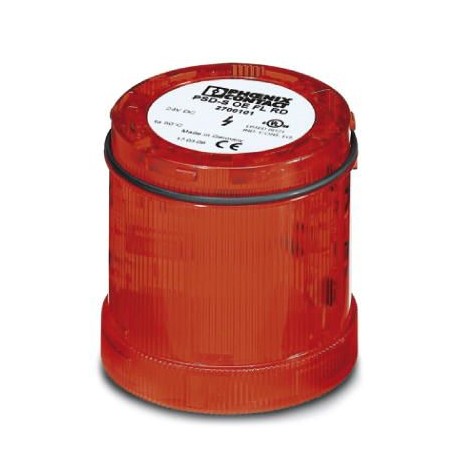

PSD-S OE FL RD 2700101 PHOENIX CONTACT Optical element
$0.00USD
3499 in stock
Key Specifications
GTIN:4046356491037
Note:Made to Order (non-returnable)
Orderkey:2700101
Catalog page:Page 342 (C-8-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356491037 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2700101 |
| Catalog page | Page 342 (C-8-2013) |
| Packing unit | 1 pc |
| Custom tariff number | 85318095 |
| Input voltage (General) | 24 V DC |
| Operating time (General) | 100 % |
| Signal frequency (General) | approx. 1 Hz |
| Weight (Ambient conditions) | 73 g |
| Height (Key Commercial Data) | 65.5 mm |
| Current consumption (General) | 125 mA |
| Material (Ambient conditions) | Polycarbonate PC |
| Optical signal type (General) | Flashing |
| Diameter (Key Commercial Data) | 70 mm |
| Maximum inrush current (General) | max. 200 mA |
| Degree of protection (Dimensions) | IP65, when installed or with cover |
| Calotte color (Ambient conditions) | red |
| Service life, electrical (General) | 4 million flashes, minimum |
| Weight per Piece (excluding packing) | 76.000 g |
| Mounting position (Ambient conditions) | any |
| Dimensional drawing (Key Commercial Data) | |
| Assembly instructions (Ambient conditions) | Rubber seal pre-installed for each element |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Electromagnetic compatibility (Electrical data) | Conformance with EMC Directive 2014/30/EU |
| Electromagnetic compatibility (Approvals / conformities) | Conformance with EMC Directive 2014/30/EU |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
