PSD-S CE-TM SPRING

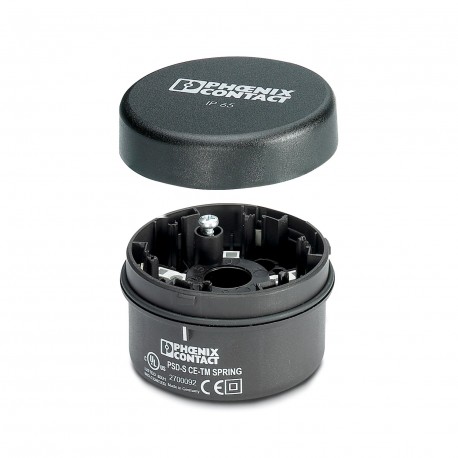

PSD-S CE-TM SPRING 2700092 PHOENIX CONTACT Connection element
$0.00USD
4962 in stock
Key Specifications
:End cover and seal
Color:black
Height:27 mm
Diameter:69 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| End cover and seal | |
| Color | black |
| Height | 27 mm |
| Diameter | 69 mm |
| Material | PA-GF |
| Product type | Assembly element |
| Assembly note | Rubber seal pre-installed for each element |
| Mounting type | Tube mounting |
| Article revision | 00 |
| Stripping length | 7 mm |
| Connection method | Spring-cage connection |
| Mounting position | any |
| Scope of delivery | End cover and seal |
| Dimensional drawing | |
| Note on application | Only for industrial use |
| Degree of protection | IP65, when installed |
| Nominal input voltage range | 12 V AC/DC ... 240 V AC/DC |
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
| Conductor cross section, rigid | 0.5 mm² ... 1.5 mm² |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
| Number of mountable signal elements | max. 5 |
| Conductor cross section, flexible [AWG] | ... 15 |
Product Description
Connecting element with spring-loaded terminal blocks for tube mounting
