In Stock Hot Product
PSD-30C-5

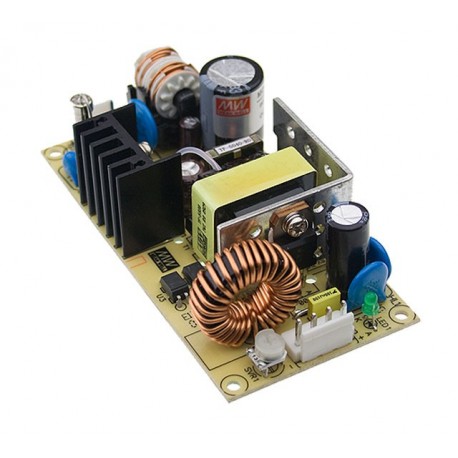

PSD-30C-5 MEANWELL DC-DC Single output Open frame converter, Input 36-72VDC, Output 5VDC / 5A
$12.12USD
869 in stock
Key Specifications
Name:PSD-30C-5
Format:Open Format
Series:PSD-30
Approvals:EC
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PSD-30C-5 |
| Format | Open Format |
| Series | PSD-30 |
| Approvals | EC |
| Power (W) | 25,00 |
| Subformato | 4"x2" |
| Width (mm) | 50.80 |
| Height (mm) | 30.00 |
| Input range | 2:1 |
| Applications | Railway, Industrial, Telecommunications |
| DC input Max | 72,00 |
| DC input Min | 36,00 |
| Manufacturer | MEAN WELL |
| Product type | Dc/DC converters |
| Isolation (V) | 1.500,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Twenty five |
| Range DC Input | 36, 36,4, 38,4, 40, 43, 46,8, 50, 50,4, 52, 56, 60, 62,4, 64,4, 67,2, 72 |
| Input connector | Quick Connector |
| Long/Background | 101.60 |
| Long Description | Dc/DC converter low cost, open format.Converter for Industrial applications or TelecommunicationsInput range36-72VccOutput voltage5vdcAdjustable by potentiometer (6-7,5 Vdc)Output intensity5APower:25WEfficiency of 80%.Operating temperature of the box from -20ºC to +60ºC (refer to the curve derived in the technical data sheet).Dimensions (Length x Width x Height):101.6 x 50.8 x 30mm.This converter has a very compact size and is designed to give an isolated output, and stabilized. It allows us to give an output reliable when we have an entry from a battery or from any other computer that can easily swing in addition to achieving isolation between input and output. Its compact size makes it ideal for all types of applications.2 Years of Warranty.Manufacturer: MEAN WELL |
| Output connector | Quick Connector |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dc/DC converter low cost, open format.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
