PSD-15B-5

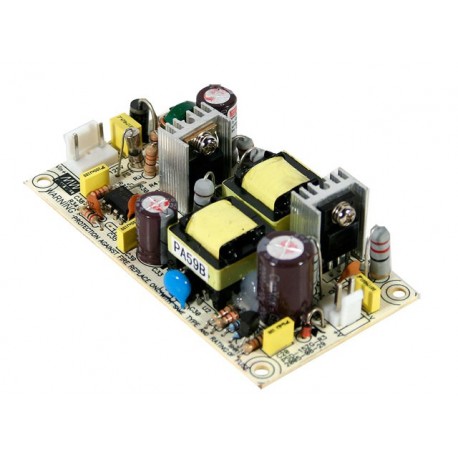

PSD-15B-5 MEANWELL DC-DC Single output Open frame converter, Input 18-36VDC, Output 5VDC / 3A
$0.00USD
3336 in stock
Key Specifications
Name:PSD-15B-5
Format:Open Format
Series:PSD-15
Approvals:EC
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PSD-15B-5 |
| Format | Open Format |
| Series | PSD-15 |
| Approvals | EC |
| Power (W) | 15,00 |
| Width (mm) | 94.00 |
| Height (mm) | 25.00 |
| Input range | 2:1 |
| Applications | Railway, Industrial, Telecommunications |
| DC input Max | 36,00 |
| DC input Min | 18,00 |
| Manufacturer | MEAN WELL |
| Product type | Dc/DC converters |
| Isolation (V) | 1.500,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Fifteen |
| Range DC Input | 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36 |
| Input connector | Quick Connector |
| Long/Background | 49.00 |
| Long Description | Dc/DC converter low cost, open format.Converter for Industrial applications or Telecommunications.Input range18-36Vcc.Output voltage5vdcAdjustable by potentiometer (5,75-6,75 Vdc).Output intensity3A.Power:15W.Efficiency of the78%.Operating temperature of the enclosure from-10up+60 ° C(see the curve derived in the technical data sheet).Dimensions (Length x Width x Height):94 x 49 x 25mm.2 years of warranty.Manufacturer: MEAN WELL.This converter has a very compact size and is designed to give an isolated output, and stabilized. It allows us to give an output reliable when we have an entry from a battery or from any other computer that can easily swing in addition to achieving isolation between input and output. Its compact size makes it ideal for all types of applications. |
| Output connector | Quick Connector |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dc/DC converter low cost, open format.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
