PSC/AP-0E

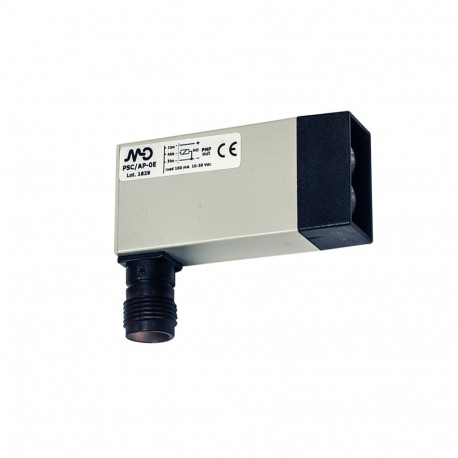

PSC/AP-0E MICRO DETECTORS Photoelectric sensor Retroreflective 2 m NO/PNP M12 plug M12
$0.00USD
3156 in stock
Key Specifications
Weight:90g
Emission:infrared (880nm)
Material:Housing ABS; Optic PMMA
Approvals:CE
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 90g |
| Emission | infrared (880nm) |
| Material | Housing ABS; Optic PMMA |
| Approvals | CE |
| Dimensions | 15x54,5X26mm |
| Connections | Right angle M12 plastic plug cable |
| Output type | PNP |
| Load current | ≤ 100mA |
| LED indicators | Red (output energized) |
| Optic position | Axial |
| Leakage current | ≤ 10μA @ Vmax |
| Output Function | NO |
| Repeat Accuracy | ≤ 5% |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Function Principle | Retro-reflective |
| Max ripple content | ≤ 10% |
| Output voltage drop | 1,2V max |
| Switching frequency | 100Hz |
| Thermal drift of Sr | ≤ 10% Sr |
| Active Head Material | PMMA |
| Degree of protection | IP65 |
| Supplied Accessories | ST07 mounting bracket and screws |
| Operating temperature | - 25°C…+ 70°C ( without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | 30mA max |
| Sensitivity adjustment | 1 turn trimmer |
| Nominal sensing distance | 3m |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 3000lux Incandescent Lamp, 10000lux |
| Time delay before availability | 200ms |
Product Description
PSC/AP-0E Photoelectric sensor Retroreflective 2 m NO/PNP M12conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
