In Stock Hot Product
PSC-160B-C

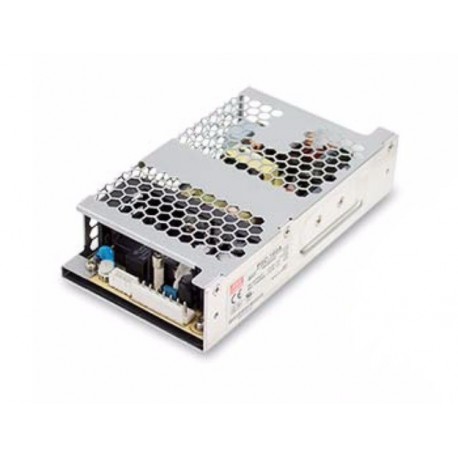

PSC-160B-C MEANWELL AC-DC Single output open frame power supply with battery charger (UPS function), Output ..
$0.00USD
3908 in stock
Key Specifications
Oh:12, 15, 20, 24, 25, 26, 30, 35
Name:PSC-160B-C
Stock:Yes
Alarms:Battery Low, mains Failure
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oh | 12, 15, 20, 24, 25, 26, 30, 35 |
| Name | PSC-160B-C |
| Stock | Yes |
| Alarms | Battery Low, mains Failure |
| Format | Box |
| Series | PSC-160-C |
| Output 1 | +24 |
| Approvals | CE, UL |
| Power (W) | 160,00 |
| Subformato | Grid |
| Width (mm) | 85.00 |
| Height (mm) | 37.00 |
| Applications | Building automation, Industrial, Telecommunications |
| Battery type | Lead, AGM, Wet |
| Manufacturer | MEAN WELL |
| Product type | UPS |
| Charge stages | Two |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | One hundred sixty |
| Input connector | Plug-in |
| Long/Background | 155.40 |
| Long Description | UPS input switches and output continuously.Format box of the grid.Range of universal input90-264vac. 47-63Hz.Output voltagefor the loadwith power: 27,6 Vdc.Output voltage in battery mode: voltage of the battery.Output intensity3.8 To. Peak Of 5.8 A.Float voltageadjustable24-29Vcc. (The setting of the float voltage also adjusts the output voltage of power supply).Intensity of load2A.Power:160W.Type of batteries:Gel, AGM and wet.Battery capacity:12-35Ah.Efficiency typical:90%at full load with power.Protection against deep discharge of the batteries.No cut in output in the step feed mode to battery mode. 0ms transfer time.Alarms correct supply AC OK and battery low via TTL signal to open collector.Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Larco x Width x Height) [mm]:Eur 155.4 x 85 x 37.2 years of warranty.Manufacturer: MEAN WELL.The series PSC are Ups input switches and output continuously. When there is mains power the computer gives a stable output while charging the battery. In case of failure of power supply maintains the output fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage.These are protected against overloads, short-circuit in the output, sobrentesión output, low battery and reverse battery polarity (by fuse). Also feature alarms by signal: TTL open collector which alert us in case of network failure or when the output voltage is lower than a certain value, indicating that the capacity of the battery is low. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
UPS input switches and output continuously.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
