In Stock Hot Product
PS-6

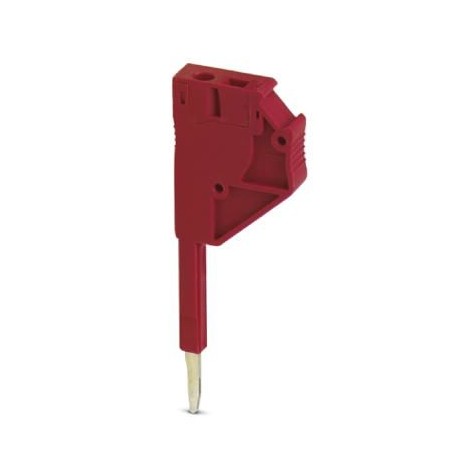

PS-6 3030996 PHOENIX CONTACT Test plugs
$4.39USD
2312 in stock
Key Specifications
GTIN:4017918818937
Orderkey:3030996
Catalog page:Page 92 (C-1-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918818937 |
| Orderkey | 3030996 |
| Catalog page | Page 92 (C-1-2017) |
| Packing unit | 10 pc |
| Value (General) | 0.75 mm² |
| Country of origin | PL (Poland) |
| Color (Dimensions) | red |
| Material (General) | PA |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Width (Key Commercial Data) | 6.2 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 60 mm |
| Length (Key Commercial Data) | 22.4 mm |
| Weight per Piece (excluding packing) | 3.510 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 () | V0 |
| Conductor cross section AWG max. (General) | 17 |
| Conductor cross section AWG min. (General) | 26 |
| Conductor cross section solid max. (General) | 1.00 mm² |
| Conductor cross section solid min. (General) | 0.14 mm² |
| Conductor cross section flexible max. (General) | 1 mm² |
| Conductor cross section flexible min. (General) | 0.14 mm² |
| Max. AWG conductor cross section, flexible (General) | 17 |
| Min. AWG conductor cross section, flexible (General) | 26 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 0.75 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
