PS 6-DI-SD

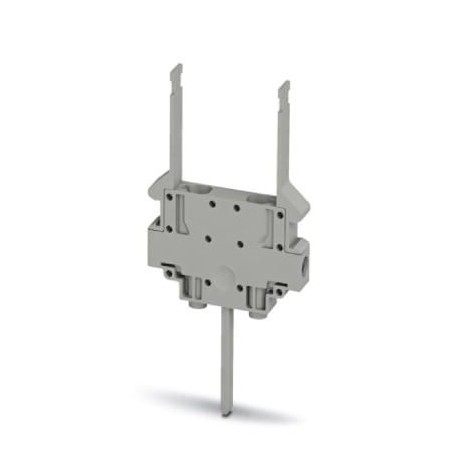

PS 6-DI-SD 3246856 PHOENIX CONTACT Isolating plugs
$0.00USD
4893 in stock
Key Specifications
GTIN:4046356915182
Note:Made to Order (non-returnable)
Orderkey:3246856
Catalog page:Page 491 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356915182 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3246856 |
| Catalog page | Page 491 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 6.2 mm |
| Height (General) | 78.3 mm |
| Length (General) | 39.3 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | 2.5 mm² / 0.7 kg |
| Minimum order quantity | 50 pc |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Weight per Piece (excluding packing) | 4.570 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Bending test turns (Key Commercial Data) | 135 |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Tensile test result (Key Commercial Data) | Test passed |
| Result of bending test (Key Commercial Data) | Test passed |
| Tractive force setpoint (Key Commercial Data) | 50 N |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Conductor cross section tensile test (Key Commercial Data) | 2.5 mm² |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Bending test conductor cross section/weight (Key Commercial Data) | 0.5 mm² / 0.3 kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Dimensions) | HL 1 - HL 3 |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
Product Description
Interrupt plug, with pure separation function, length: 39.3 mm, width: 6.2 mm, height: 78.3 mm, number of poles: 1, color: gray
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
