In Stock Hot Product
PS-45-5

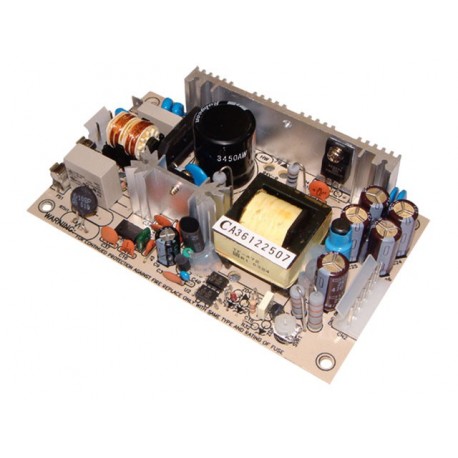

PS-45-5 MEANWELL AC-DC Single output Open frame power supply, Output 5VDC / 8A
$0.00USD
3698 in stock
Key Specifications
Name:PS-45-5
State:Do not Use for New Designs
Format:Open Format
Series:PS-45
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PS-45-5 |
| State | Do not Use for New Designs |
| Format | Open Format |
| Series | PS-45 |
| Approvals | CE, UL |
| Power (W) | 40,00 |
| Subformato | 5"x3" |
| Width (mm) | 76.00 |
| Height (mm) | 28.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Forty |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 127.00 |
| Long Description | Power supply in an Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Output voltage5vdc.Output intensity8A. Range of output current 0-8A according to demand load.Power:40W.Efficiency typical:74%.Consumption without load<0,75 W.Working temperature: from-Tenup+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76 x 28.2 years of warranty.Manufacturer: MEAN WELL.The series PS-45 is one of the most successful series of MEAN WELL, have had large sales volume for many years and has shown great reliability and robustness . It has been used in all kinds of industrial applications and telecommunications.It has a low noise and ripple, and a low leakage current.However, for new designs it is recommended to use the seriesEPS-45more compact, efficient and with best performance. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an Open Format(Open-Frame).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
