In Stock Hot Product

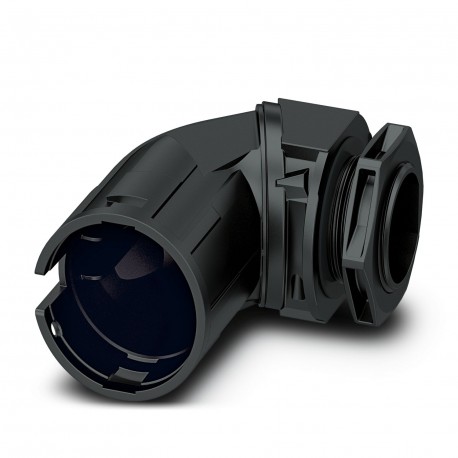

PRC FT25-45/90-HSG
PRC FT25-45/90-HSG 1065796 PHOENIX CONTACT Circular connectors (device-side), Range of articles: PRC, Device..
$0.00USD
3243 in stock
Key Specifications
:• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Color:black
Width:60.9 mm
Height:37.6 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| Color | black |
| Width | 60.9 mm |
| Height | 37.6 mm |
| Length | 74.8 mm |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Product type | Panel feed-through |
| Seal material | Silicon |
| Product family | PRC 35 |
| O-ring material | EPDM |
| Article revision | 04 |
| Housing material | PPE |
| Protection class | II |
| Order information: | Connector housing without contact insert. Please order the appropriate contact inserts according to the accessories list |
| Degree of pollution | 2 |
| Nominal voltage ATD | 690 V AC (III/2.00) in accordance with IEC 61984 |
| Degree of protection | IP66 / IP68 (2m / 24h) / IP69K |
| Rated voltage (III/2) | 690 V |
| Color of the housing part | black |
| Insulating material group | I / CTI 600 |
| Rated surge voltage (III/3) | 6 kV |
| Material for screw connection | PPE |
| Ambient temperature (assembly) | -5 °C ... 85 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Product Description
Conect. plug. to be apar. front wall, Article family: PRC 35, housing material: PPE, color: black, rated voltage: 690 V AC. Connector housing without contact insert. Order the appropriate contact inse
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
