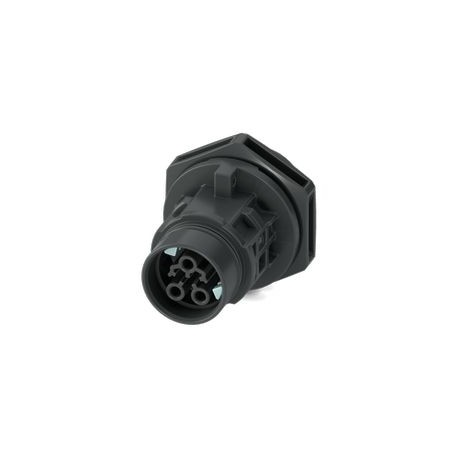

PRC 20/3-C3-FT25-FS2,5
PRC 20/3-C3-FT25-FS2,5 1313309 PHOENIX CONTACT Conect. plug. to be apar. front wall, Article family: PRC 20,..
$14.32USD
733 in stock
Key Specifications
:400 V AC (III/2) in accordance with IEC 61535
Color:black
Width:34 mm
Coding:3-C3
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 400 V AC (III/2) in accordance with IEC 61535 | |
| Color | black |
| Width | 34 mm |
| Coding | 3-C3 |
| Height | 38.4 mm |
| Length | 52 mm |
| General | Setting option for release: 1. with a tool or 2. by hand |
| Halogen-free | yes |
| Product type | Panel feed-through |
| Rated current | 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535) |
| Product family | PRC 20 |
| Protection class | II |
| Connection method | Screw connection |
| Connection profile | 3 |
| Area of application | SIGNAL |
| Nominal voltage ATD | 400 V (III/2) in accordance with IEC 61984 |
| Number of positions | 3 |
| Degree of protection | IP66 |
| Single wire, cross section | 0.5 mm² 2.5 mm² |
| Stripping length of the individual wire | 10 mm (Lay PE conductor 8 mm leading) |
Product Description
Connect. plug. for apar. wall lamp, Item family: PRC 20, colour: black, number of poles: 3, min. conductor cross-section: 0.5 mm², max. conductor cross-section: 2.5 mm², nominal voltage: 400 V, rated
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
