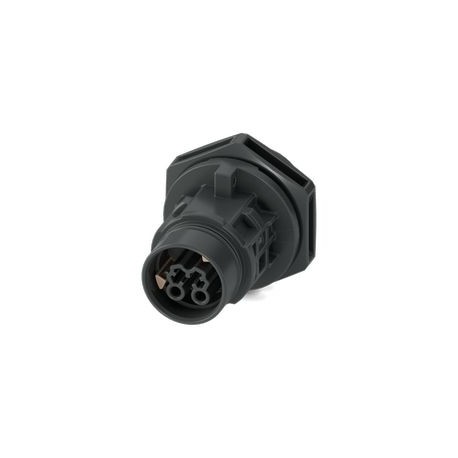

PRC 20/2-C4-FT25-FS2,5
PRC 20/2-C4-FT25-FS2,5 1313283 PHOENIX CONTACT Conect. plug. to be apar. Front wall, Article family: PRC 20,..
$12.23USD
863 in stock
Key Specifications
:400 V AC (III/2) according to IEC 61535
Link:Screw connection
Color:black
Scope:SELV
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 400 V AC (III/2) according to IEC 61535 | |
| Link | Screw connection |
| Color | black |
| Scope | SELV |
| width | 34 mm |
| Coding | 2-C4 |
| height | 38.4 mm |
| length | 52 mm |
| Halogen-free | Yes |
| No. of poles | 2 |
| Product Type | Bulkhead |
| General notes | Setting options for unlocking: 1 with a tool or 2 by hand |
| Rated current | 20 A (with conductor cross-section of 2.5 mm² in accordance with IEC 61535) |
| Insertion plan | 2 |
| Product Family | PRC 20 |
| Security class | II |
| ATD Voltage Rating | 400 V (III/2) according to IEC 61984 |
| Degree of protection | Ip66 |
| Single conductor, cross-section | 0.5 mm² 2.5 mm² |
| Length of the stripping section of the individual strands | 10 mm (Early installation of PE conductor 8 mm) |
Product Description
Device connector front, Product series: PRC 20, colour: black, number of poles: 2, min. conductor cross-section: 0.5 mm2, max. conductor cross-section: 2.5 mm2, dimensioning voltage: 400 V, rated curr
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
