PPT-125A

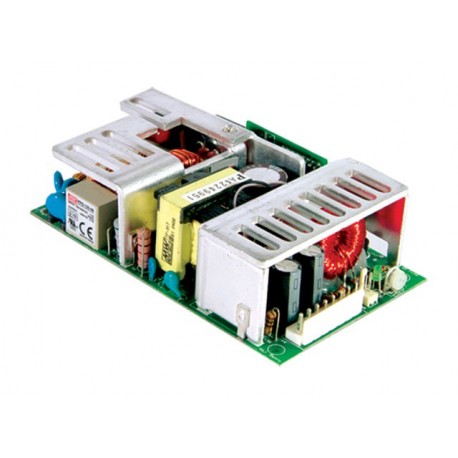

PPT-125A MEANWELL AC-DC Triple output Open frame power supply, Output 3.3VDC / 12.5A +5VDC / 10A +12VDC / 0...
$41.95USD
282 in stock
Key Specifications
Name:PPT-125A
Alarms:Powerfail, Output OK
Format:Open Format
Series:PPT-125
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PPT-125A |
| Alarms | Powerfail, Output OK |
| Format | Open Format |
| Series | PPT-125 |
| Output 1 | +3,3 |
| Output 2 | +5 |
| Output 3 | +12 |
| Approvals | CE, UL |
| Power (W) | 79,00 |
| Subformato | 5"x3" |
| Width (mm) | 127.00 |
| Height (mm) | 34.60 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | 98.8 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 76.00 |
| Long Description | Power supply in Format Grid.Range of universal Input90-264vac47-63Hz.Outputs:+3.3 Vdc:Minimum intensity of output10A.Maximum output current12,5Amps.+5vdc:Minimum intensity of output8A.Maximum output currentTenAmps.+12vdc:Minimum intensity of output0.5 To.Maximum output current0,63Amps.Power:79Wand98,8 W with the external air 18CFM.Efficiency typical:75%.Factor corrector, power>0,93to 230vac at full load.Operating temperature range from-20up+70ºC.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 34,6.3 years of warranty.Manufacturer: MEAN WELL.Series PPT-125 switching power supplies in format semi-open type 5"x 3", with a correcting factor of power, active and high efficiency.Have a low profile of only 34,6 mm height and its technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in Format Grid.
