PPS-200-27

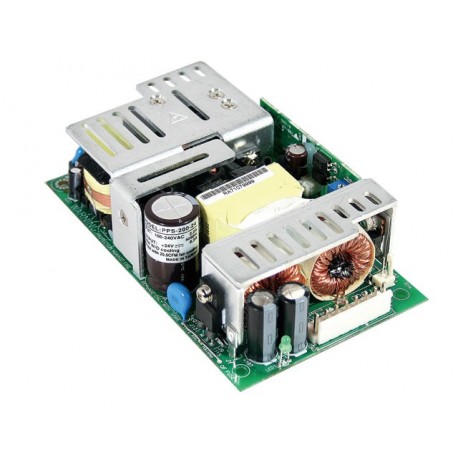

PPS-200-27 MEANWELL AC-DC Single output Open frame power supply with PFC, Output 27VDC / 7.4A
$0.00USD
4880 in stock
Key Specifications
Name:PPS-200-27
State:Do not Use for New Designs
Stock:Yes
Alarms:Powerfail, Output OK
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | PPS-200-27 |
| State | Do not Use for New Designs |
| Stock | Yes |
| Alarms | Powerfail, Output OK |
| Format | Open Format |
| Series | PPS-200 |
| Approvals | CE, UL |
| Power (W) | 150,00 |
| Subformato | 5"x3" |
| Width (mm) | 127.00 |
| Height (mm) | 34.60 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 27,00 |
| Peak Power (W) | 199.8 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 76.00 |
| Long Description | Power supply in an Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Output voltage27Vcc.Adjustable by potentiometer (24,6-30vdc).Output intensity5,56 To. Range of output current 0-7,4 according To the demand load.Power:150W and 199,8 W TO 20.5 CFM fan.Efficiency typical:89%.Factor corrector, power>0,93to 230vac at full load.Operating temperature range from-20up+70ºC.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 35.1.3 years of warranty.Manufacturer: MEAN WELL.Series PPS-200 are power supplies switched-format semi-open type 5"x 3", with a correcting factor of power, active and high efficiency.Have a low profile of only 35,1 mm of height and its technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an Open Format(Open-Frame).
