PPC 2,5/9

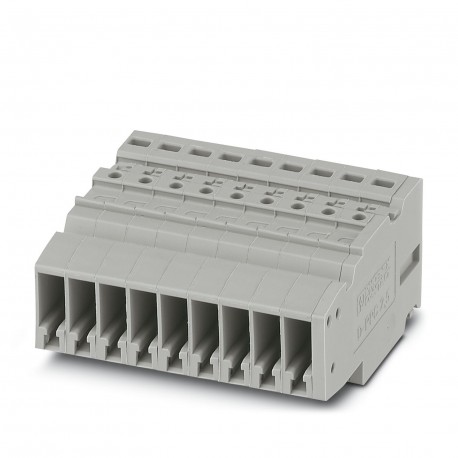

PPC 2,5/9 3000663 PHOENIX CONTACT COMBI receptacle
$0.00USD
4481 in stock
Key Specifications
:B3
Color:gray (RAL 7042)
Depth:41 mm
Pitch:5.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| B3 | |
| Color | gray (RAL 7042) |
| Depth | 41 mm |
| Pitch | 5.2 mm |
| Width | 48.55 mm |
| Height | 22 mm |
| Result | Test passed |
| Spectrum | Service life test category 1, class B, body mounted |
| ASD level | 0.964 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 150 Hz |
| Potentials | 1 |
| Pulse shape | Half-sine |
| Acceleration | 0.58g |
| Product type | Terminal coupling |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Number of rows | 1 |
| Shock duration | 30 ms |
| Nominal current | 24 A |
| Nominal voltage | 500 V |
| Open side panel | Yes |
| Test directions | X-, Y- and Z-axis |
| Article revision | 02 |
| Stripping length | 8 mm ... 10 mm |
| Time of exposure | 30 s |
| Cross section AWG | 26 ... 12 (converted acc. to IEC) |
| Degree of pollution | 3 |
| Insulating material | PA |
| Number of positions | 9 |
| Rated surge voltage | 6 kV |
| Maximum load current | 24 A (with a 2.5 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 2.5 mm² |
| Number of connections | 9 |
| Test voltage setpoint | 7.3 kV |
| Test duration per axis | 5 h |
| Insulating material group | I |
| Internal cylindrical gage | A3 |
| Conductor cross section rigid | 0.14 mm² ... 4 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 61984 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Short-time withstand current 2.5 mm² | 0.3 kA |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Conductor cross section, flexible [AWG] | 26 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 0.77 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
Product Description
COMBI coupling, rated voltage: 500 V, rated current: 24 A, number of connections: 9, number of poles: 9, connection type: Push-in connection, 1st floor, Sizing cross-section: 2.5 mm², cross-section: 0
