In Stock Hot Product
PP1535H

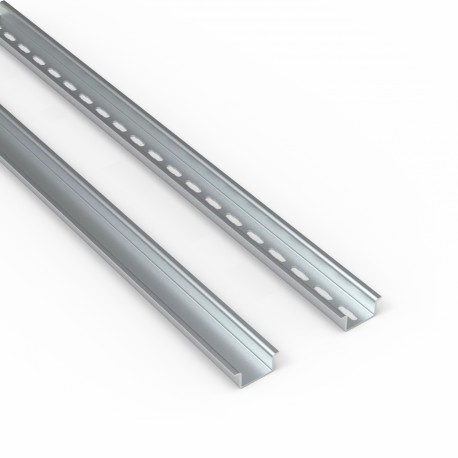

PP1535H ELDON Din rail with holes, 2000 PP1535H, 2m
$0.00USD
3238 in stock
Key Specifications
EAN:8713574013391
UPC:783510526313
Color:Unpainted
Width:35 mm
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 8713574013391 |
| UPC | 783510526313 |
| Color | Unpainted |
| Width | 35 mm |
| Finish | Galvanized |
| Height | 15 mm |
| Material | Steel |
| Hole Type | Omega |
| Feature Name | Feature Value |
| Hole Diameter | 5.2 mm min |
| Hole Quantity | 18 |
| Holes Included | Yes |
| Product Family | IEC General Accessories |
| Model (EF000010) | DIN rail (top hat rail) 35/15 mm |
| Packing Quantity | 15.0000 |
| Height (EF000040) | 2.00 mm |
| Length (EF001438) | 2.00 mm |
| Material (EF002169) | Steel |
| Atributo del producto | Valor |
| Punch shape (EF001457) | Long-slot |
| Standard Packaging Quantity | 1.0000 |
| Material thickness (EF000386) | 1.50 mm |
| Surface protection (EF000139) | |
| Drill hole distance centrically (EF002677) | None mm |
Product Description
DIN rail with holes 2000. 2 mtr.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
