PP-RJ-SC-F

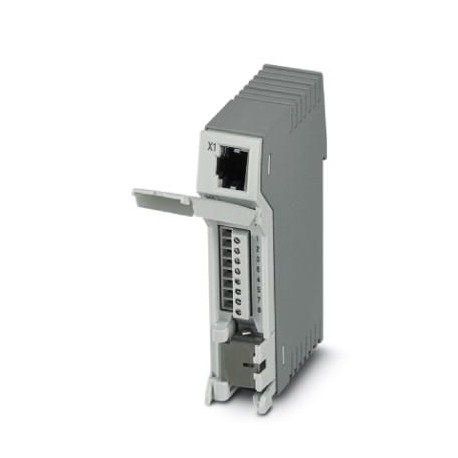

PP-RJ-SC-F 2703021 PHOENIX CONTACT Patch panels
$0.00USD
4407 in stock
Key Specifications
GTIN:4055626463339
Note:Made to Order (non-returnable)
Orderkey:2703021
(General):42 V DC ... 57 V DC (With UL approval)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626463339 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2703021 |
| (General) | 42 V DC ... 57 V DC (With UL approval) |
| (Function) | Class I, Div. 2, Groups A, B, C, D |
| Packing unit | 1 pc |
| (Dimensions) | 2000 m (ATEX approval) |
| ATEX (Function) | II 3 G Ex nA nC IIC T4 Gc X |
| Country of origin | DE (Germany) |
| Signal (Function) | ± 1 kV (Data line, asymmetrical) |
| UL, USA (Function) | UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4 |
| Comments (Function) | Criterion B |
| Custom tariff number | 85366990 |
| (Ambient conditions) | Class I, Div. 2, Groups A, B, C, D |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| Torque (Power supply) | 0.22 Nm ... 0.25 Nm |
| UL, Canada (Function) | CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16 |
| Conformance (Function) | CE-compliant |
| Test result (Function) | 25g for 11 ms, three shocks in each direction |
| Type of test (Function) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| ATEX (Ambient conditions) | II 3 G Ex nA nC IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
| MTTF (Ambient conditions) | 3268 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| UL, USA/Canada (Function) | Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4 |
| Color (Ambient conditions) | gray |
| Frequency range (Function) | 0.15 MHz ... 80 MHz |
| Interface 1 (Power supply) | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
| Interface 2 (Power supply) | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
| Voltage (Serial interface) | ≤ 10 V |
| Depth (Key Commercial Data) | 86 mm |
| Noxious gas test (Function) | ISA-S71.04-1985 G3 Harsh Group A |
| Width (Key Commercial Data) | 23.8 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Contact discharge (Function) | ± 6 kV (Test Level 3) |
| Height (Key Commercial Data) | 101.3 mm |
| Impedance (Serial interface) | ≤ 1 Ω |
| Precision (Serial interface) | ± 5 % |
| UL, USA (Ambient conditions) | UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4 |
| Indirect discharge (Function) | ± 6 kV |
| Pin assignment (Power supply) | 1:1 |
| Designation (Serial interface) | Shield current monitoring |
| Supply voltage range (General) | 36 V DC ... 52 V DC 10 % (via PoE) |
| Net weight (Ambient conditions) | 124.2 g |
| Stripping length (Power supply) | 5 mm |
| UL, Canada (Ambient conditions) | CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16 |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | RJ45 CAT5e |
| Response time (Serial interface) | 3 s |
| Standards/regulations (Function) | DIN EN 61643-21 |
| Degree of protection (Dimensions) | IP20 (Manufacturer's declaration) |
| IEC test classification (Function) | C2 |
| Transmission length (Power supply) | 100 m (including patch cables) |
| Maximum output power (Power supply) | 60 W |
| Rated insulation voltage (Function) | 85 V DC |
| UL, USA/Canada (Ambient conditions) | Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4 |
| Local diagnostics (Serial interface) | Yellow LED |
| Power consumption (Serial interface) | 270 mW (Shield current monitoring) |
| Weight per Piece (excluding packing) | 124.200 g |
| Housing material (Ambient conditions) | Plastic |
| Maximum output current (Power supply) | 725 mA (PoE) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Switch-on threshold (Serial interface) | ≥ 30 mA |
| Current carrying capacity (Power supply) | ≤ 1.5 A (≤ 60 W (PoE+)) |
| Degree of pollution (Ambient conditions) | 2 |
| Electromagnetic compatibility (Function) | Conformance with EMC Directive 2014/30/EU |
| Serial transmission speed (Power supply) | 10/100/1000 Mbps |
| Dimensional drawing (Key Commercial Data) | |
| Electrical isolation (Ambient conditions) | FE // Ethernet |
| Overvoltage category (Ambient conditions) | II |
| Standards/regulations (Ambient conditions) | DIN EN 61643-21 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 75 °C |
| Continuous shield current (Serial interface) | ≤ 1.5 A |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Conductor cross section AWG max. (Power supply) | 16 |
| Conductor cross section AWG min. (Power supply) | 28 |
| Conductor cross section solid max. (Power supply) | 1.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.14 mm² |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 1.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.14 mm² |
Product Description
Patch panel, RJ45 female connector on screw terminals, 10/100/1000 MBit/s, DIN rail adapter, IP20, protective contact with strain relief, shielding current control, surge protection
