In Stock Hot Product
PN UNI DEVICE

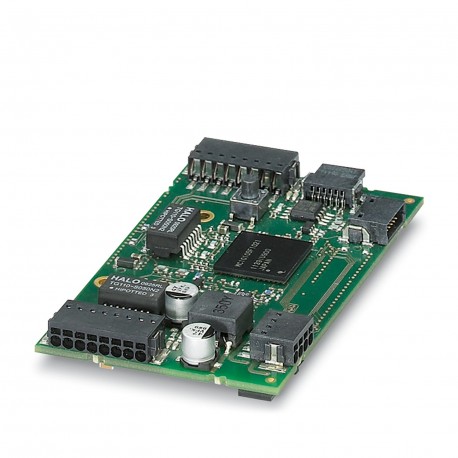

PN UNI DEVICE 2701242 PHOENIX CONTACT Plug-in board
$0.00USD
4222 in stock
Key Specifications
GTIN:4046356727235
Orderkey:2701242
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Interface ():PROFINET
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356727235 |
| Orderkey | 2701242 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Interface () | PROFINET |
| Packing unit | 1 pc |
| Type (Module) | Daughterboard |
| Protocol chip () | TPS-1 |
| Country of origin | DE (Germany) |
| User interface () | Two 60-pos. socket strips for power supply, diagnostics, configuration, GPIOs, and status LEDs. |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Connection method () | 2 ports, 10/100 Mbp/s, auto negotiation |
| Custom tariff number | 85176200 |
| REACh SVHC (General) | Lead 7439-92-1 |
| Type (Ambient conditions) | Daughterboard |
| IC power supply voltage () | 5 V DC ±10 % (DC) |
| Width (Key Commercial Data) | 80 mm |
| Length (Key Commercial Data) | 50 mm |
| Interface (Ambient conditions) | PROFINET |
| Typical current consumption () | approx. 55 mA (Without active PHYs) |
| User interface (Ambient conditions) | Two 60-pos. socket strips for power supply, diagnostics, configuration, GPIOs, and status LEDs. |
| Weight per Piece (excluding packing) | 65.600 g |
| Connection method (Ambient conditions) | 2 ports, 10/100 Mbp/s, auto negotiation |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 70 °C |
| IC power supply voltage (Ambient conditions) | 5 V DC ±10 % (DC) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C (non-condensing) |
Product Description
Universal Communication Module as a Daughter Board
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
