PMW/0P-1H

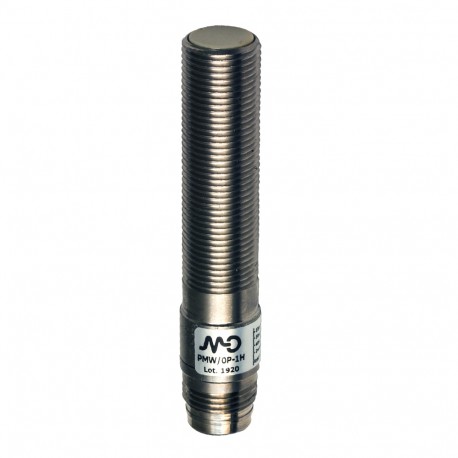

PMW/0P-1H MICRO DETECTORS Inductive sensor M12 shielded PNP plug M12 stainless Steel
$0.00USD
4352 in stock
Key Specifications
Weight:30g
Mounting:Shielded
Approvals:CE
Dimensions:M12 x 1 / L =64,6mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Mounting | Shielded |
| Approvals | CE |
| Dimensions | M12 x 1 / L =64,6mm |
| Hysteresis | 1 … 20% |
| Connections | M12 Plug |
| Output type | PNP |
| Load current | ≤ 100mA |
| LED indicators | Yellow LED output state |
| Leakage current | ≤ 10μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 12x12mm FE360 |
| Housing Material | stainless steel AISI303 |
| Correction Factor | copper: 0,02 / aluminium: 0,08 / brass: 0,20 / stainless steel: 0,68 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 20Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…1,62mm |
| Output voltage drop | ≤ 2V @100mA |
| Switching frequency | 2kHz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PPS |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 nuts M12x1 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤ 15mA |
| Nominal sensing distance | 2mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | 50ms |
Product Description
PMW/0P-1H Inductive sensor M12 shielded PNP conn. M12 stainless Steel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
