PMSKV 7-12

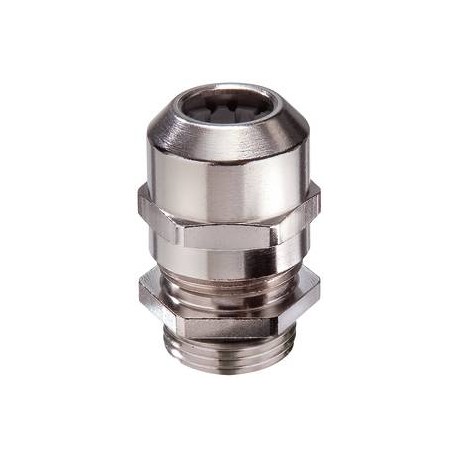

PMSKV 7-12 10100677 WISKA Metal cable glands with M12 body, IP68 range from 3.0mm to 7.0mm, pg.07 thread
$0.00USD
3059 in stock
Key Specifications
Type (Features):PMSKV 7-12
Surface (Features):Nickel-plated
Thread type (Features):PG
Key width SW (Features):16 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | PMSKV 7-12 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | PG |
| Key width SW (Features) | 16 mm |
| Packing unit (Features) | 50 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 23 mm - 30 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 18 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 7 mm |
| Ø cable diameter min (Features) | 3 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 7 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10100677 |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 5 mm |
Product Description
Cable gland, brass nickel-plated, Pg 7
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
