In Stock Hot Product
PMSKV 21-32

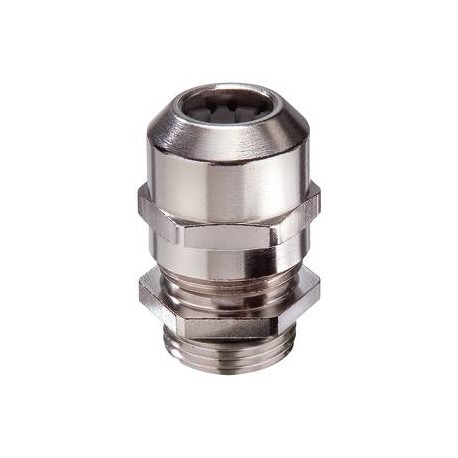

PMSKV 21-32 10100689 WISKA Metal cable glands with M32 body, IP68 range from 13.0mm to 21.0mm, pg.21 thread
$0.00USD
4503 in stock
Key Specifications
Type (Features):PMSKV 21-32
Surface (Features):Nickel-plated
Thread type (Features):PG
Key width SW (Features):36 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | PMSKV 21-32 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | PG |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 25 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 39 mm - 47 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 40 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 21 mm |
| Ø cable diameter min (Features) | 13 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 21 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10100689 |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 20 N m |
| Install. torques fitting (Features) | 20 N m |
| Length screw-in thread L (Features) | 7 mm |
Product Description
Cable gland, brass nickel-plated, Pg 21
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
