PML-W101 (25X25)

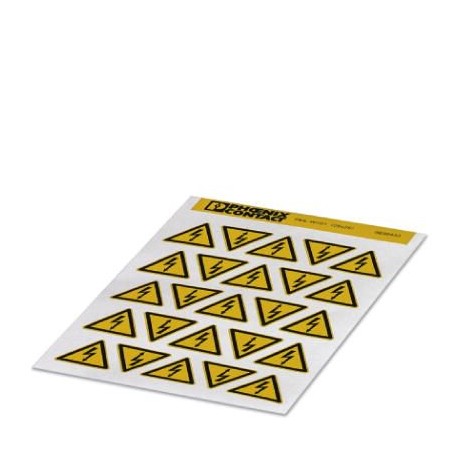

PML-W101 (25X25) 0830433 PHOENIX CONTACT Warning label
$0.00USD
4946 in stock
Key Specifications
GTIN:4046356717571
Orderkey:0830433
Catalog page:Page 370 (C-3-2017)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356717571 |
| Orderkey | 0830433 |
| Catalog page | Page 370 (C-3-2017) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39199080 |
| Minimum order quantity | 5 pc |
| Type (Ambient conditions) | Triangle |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | yellow/black |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | PVC |
| Printing (Ambient conditions) | Lightning flash |
| Diameter (Key Commercial Data) | 0.00 mm |
| Components (Ambient conditions) | Silicone-free |
| Width (a) (Key Commercial Data) | 25 mm |
| Height (c) (Key Commercial Data) | 21.65 mm |
| Length (b) (Key Commercial Data) | 25 mm |
| Foil strength (Ambient conditions) | 50 µm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 5.760 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| REACh SVHC (Standards and Regulations) | Reaction mass of DOTE and MOTE |
| Marking mounting type (Ambient conditions) | adhesive |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 90 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 25 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 5 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Warning plate, Elbow, yellow/black, labeled: Lightning with arrow, mounting class: glued, diameter: 0 mm, usable surface: 25 x 25 mm, Number of individual indexes: 25
