PML-T102 (52X560)R CUS

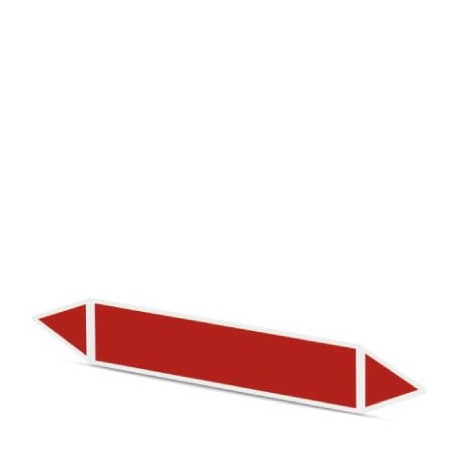

PML-T102 (52X560)R CUS 1014252 PHOENIX CONTACT Pipeline markers
$0.00USD
4086 in stock
Key Specifications
GTIN:4046356784481
Note:Made to Order (non-returnable)
Orderkey:1014252
Catalog page:Page 343 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356784481 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1014252 |
| Catalog page | Page 343 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| Type (Ambient conditions) | Rectangle |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | red |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Printing (Ambient conditions) | Steam |
| Diameter (Key Commercial Data) | 0.00 mm |
| Procedure (Ambient conditions) | A |
| Components (Ambient conditions) | Silicone-free |
| Width (a) (Key Commercial Data) | 560 mm |
| Height (c) (Key Commercial Data) | 52 mm |
| Length (b) (Key Commercial Data) | 52 mm |
| Foil strength (Ambient conditions) | 50 µm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 1.990 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 46 µm |
| Marking mounting type (Ambient conditions) | adhesive |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 150 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 1 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Pipe marker, available: by lines, red, labelled according to customer specifications: Steam, mounting class: glued, diameter: 0 mm, usable area: 52 x 560 mm
