In Stock Hot Product
PMH 2:GROSSBUCHSTABEN

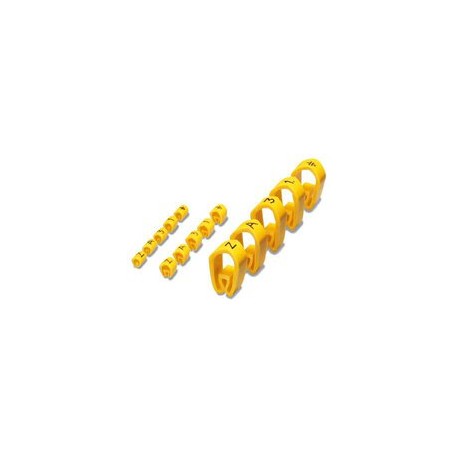

PMH 2:GROSSBUCHSTABEN 0800514 PHOENIX CONTACT Conductor marking collar
$0.00USD
3474 in stock
Key Specifications
Type:Profile
Color:yellow
Width:4.2 mm
Height:9.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Profile |
| Color | yellow |
| Width | 4.2 mm |
| Height | 9.5 mm |
| Length | 6.6 mm |
| General | Please specify the required marking with order: Minimum order per imprint: 1 packing unit |
| Material | Ethylene-vinyl acetate (EVA) |
| Printing | Letters |
| Components | free from silicone, halogen, and cadmium |
| Product type | Labeled conductor marker |
| Mounting type | slide-on |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Outside diameter | 3 mm ... 6 mm |
| Printing direction | horizontal |
| Ambient temperature (assembly) | > 10 °C |
| Ambient temperature (operation) | -45 °C ... 70 °C |
| Flammability rating according to UL 94 | V0 |
Product Description
Conductor marking collar, yellow, horizontal: Letters, mounting type: slide-on, cable diameter range: 3 ... 6 mm, lettering field size: 4.2 x 2.6 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
