PLW 16-6/ 5-10

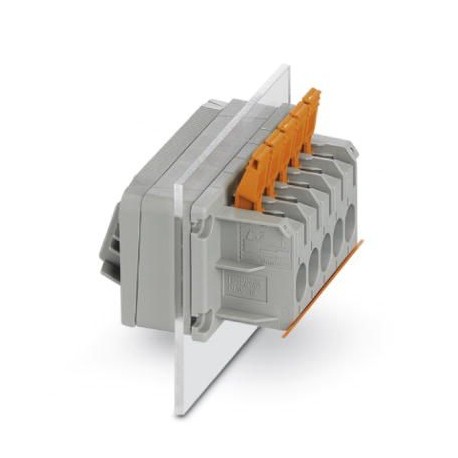

PLW 16-6/ 5-10 1821083 PHOENIX CONTACT Panel feed-through terminal block
$0.00USD
4557 in stock
Key Specifications
GTIN:4046356788212
Orderkey:1821083
Catalog page:Page 605 (C-1-2013)
Packing unit:15 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356788212 |
| Orderkey | 1821083 |
| Catalog page | Page 605 (C-1-2013) |
| Packing unit | 15 pc |
| Pitch (General) | 10 mm |
| Width (General) | 74.4 mm |
| Country of origin | SK (Slovakia) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 15 pc |
| Plate thickness (General) | 19.26 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection side (Dimensions) | inside |
| Stripping length (Dimensions) | 15 mm |
| Connection method (Dimensions) | Push-in connection |
| Weight per Piece (excluding packing) | 114.940 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 41 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 5 |
| Maximum load current (Key Commercial Data) | 41 A |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 16 mm² |
| Number of connections (Key Commercial Data) | 10 |
| Conductor cross section AWG max. (Dimensions) | 4 |
| Conductor cross section AWG min. (Dimensions) | 14 |
| Conductor cross section solid max. (Dimensions) | 16 mm² |
| Conductor cross section solid min. (Dimensions) | 2.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 6 mm² |
| Conductor cross section flexible min. (Dimensions) | 1.5 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Ambient temperature (assembly) (Key Commercial Data) | -5 °C ... 105 °C |
| Ambient temperature (actuation) (Key Commercial Data) | -5 °C ... 105 °C |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C (Depending on the current carrying capacity/derating curve) |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Ambient temperature (storage/transport) (Key Commercial Data) | -40 °C ... 70 °C |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 1.5 mm² |
Product Description
Terminal block, connection type: Push-lock connection, Push-in spring connection, number of poles: 5, charging current: 41 A, cross-section: 2.5 mm² - 10 mm², conductor connection direction with respe
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
