PLTS+M

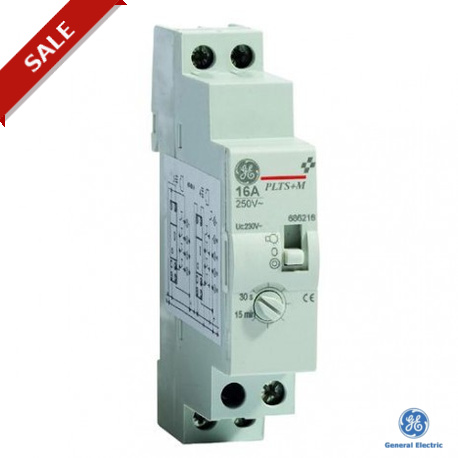

PLTS+M 686216 GENERAL ELECTRIC PULSAR-TS+ staircase switch electromechanical 16A 1NO 230Vac
$0.00USD
3146 in stock
Key Specifications
Range:Electromechanical
Screws:Pozidriv 1
Series:Pulsar TS+
Standards:CE, EN 60669-2-3
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Range | Electromechanical |
| Screws | Pozidriv 1 |
| Series | Pulsar TS+ |
| Standards | CE, EN 60669-2-3 |
| Time range | 30 s / 15 min |
| Product type | Staircase time switches |
| Nominal current | 16A/250Vac |
| Standard packing | 12 |
| Number of modules | 1 |
| Operating voltage | 230 V |
| Number of channels | 1CO |
| Switching capacity | 16A/250V |
| Contact combination | 1NO |
| Minimum contact load | 6Vac/50mA |
| Control system Screws | Pozidriv 1 |
| ETIM 6.0 (DIMENSIONS) | EC000297 |
| Mechanical service life | 1 x 10^7 |
| Weight (SPECIFICATIONS) | 0.097 kg |
| Contact spacing/material | 0.5 mm/AgSnO2 |
| Fluorescent lamp load (W) | 1000 W |
| Incandescent lamp load (W) | 2000 W |
| Electronic balast load (EVG) | 700W; lane <= 70A/10 ms |
| Terminal capacity max (mm²) | 1x6 mm² / 2x2.5 mm² |
| Terminal capacity min (mm²) | 1x0.5 mm² |
| Control system Control voltage range | 0.9 - 1.1xUn |
| Control system Terminal capacity max | 1x6 mm² of 2x2.5 mm² |
| Control system Terminal capacity min | 1x0.5 mm² |
| Electrical service life, cos (phi) = 1 | >5x10.000 |
| Inductive load, cos = 0.6 at 230Vac (W) | 650 W |
| Electrical service life, cos (phi) = 0,6 | >5x10.000 |
| Control system Operating temp range (°C) | -20°C / +45°C |
| Electrical service life, 1000 W gloeilamp | >5x10.000 |
| Isolation voltage contact / contact (Vac) | 400Vac |
| Control system Inrush current at 230 Vac (mA) | 1A |
| Control system Relative duty at rated voltage | 1 |
| Control system Max load of illum push-buttons (mA) | 50 mA |
| Control system Min duration of command impulse (ms) | 50 ms / 50 ms |
