PLS+1620008A

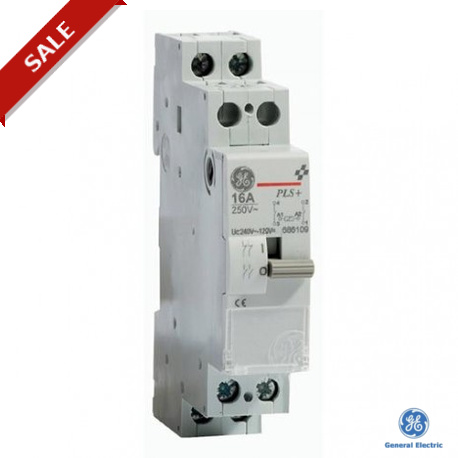

PLS+1620008A 686102 GENERAL ELECTRIC PULSAR-S+ impulse switch 16A 2NO 8Vac
$0.00USD
3509 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000188
ETIM 6.0 (DIMENSIONS):EC000188
Weight (SPECIFICATIONS):0.116 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000188 |
| ETIM 6.0 (DIMENSIONS) | EC000188 |
| Weight (SPECIFICATIONS) | 0.116 kg |
| AC/DC (ORDER/DELIVERY STATUS) | AC |
| Family (ORDER/DELIVERY STATUS) | Impulse switch - PULSAR S+ |
| Standards (ORDER/DELIVERY STATUS) | CE;IEC 60669-1;IEC 60669-2-2 |
| Coil voltage (V) (ORDER/DELIVERY STATUS) | 8 Vac |
| Standard packing (ORDER/DELIVERY STATUS) | 12 |
| Number of modules (ORDER/DELIVERY STATUS) | 1 |
| Contact combination (ORDER/DELIVERY STATUS) | 2NO |
| Coil power-loss - AC (ORDER/DELIVERY STATUS) | 11 VA |
| Coil power-loss - DC (ORDER/DELIVERY STATUS) | 7.5 W |
| Coil pick-up power (AC) (ORDER/DELIVERY STATUS) | 14.5 VA |
| Number of mod Drive module (ORDER/DELIVERY STATUS) | 1 mod. |
| Rated switching capacity (A) (ORDER/DELIVERY STATUS) | 16A |
| Electrical at full voltage AC-1 (ORDER/DELIVERY STATUS) | 4 x 105 |
| Coil Voltage range (in % from Un) (ORDER/DELIVERY STATUS) | 90-110% |
| Electrical life service Mechanical (ORDER/DELIVERY STATUS) | 2 x 106 |
| Terminal capacity (diameter min/max) (ORDER/DELIVERY STATUS) | 1.5 - 10 mm² |
| Max number of command impulses/minute (ORDER/DELIVERY STATUS) | 250 |
| Operating temperature range (min/max) (ORDER/DELIVERY STATUS) | -20°C / +45°C |
| Max electr ballast load Max load/phase (ORDER/DELIVERY STATUS) | 20A |
| Min duration of command impulse (at Un) (ORDER/DELIVERY STATUS) | 0.050 s |
| Min duration of pause between 2 impulses (ORDER/DELIVERY STATUS) | 0.150 s |
| Number of mod With section power contact (ORDER/DELIVERY STATUS) | 2 mod. |
| Max electr ballast load Rating of the fuse (ORDER/DELIVERY STATUS) | 20A |
| Max load of Incandescent lamp & fluor lamp (ORDER/DELIVERY STATUS) | 3000 W |
| Min duration of command impulse (at 90% Un) (ORDER/DELIVERY STATUS) | 0.100 s |
| Max electr ballast load Min load/phase at 5V (ORDER/DELIVERY STATUS) | 2 W |
| Max number of illum push-buttons with 2 lamps (ORDER/DELIVERY STATUS) | See technical catalogue |
| Max number of illum push-buttons with 3 lamps (ORDER/DELIVERY STATUS) | Unrestricted |
| Rated switching cap Inductive load (at 30Vdc) (ORDER/DELIVERY STATUS) | 16A |
| Coil Maximum continuous time of coil energisation (ORDER/DELIVERY STATUS) | Unrestricted |
| Max number of push-buttons Not illum push-buttons (ORDER/DELIVERY STATUS) | Unrestricted |
| Rated switching cap 250Vac (1P&2P)/400Vac (3P&4P) (ORDER/DELIVERY STATUS) | 16A |
| Max load illum circ- No parallel capacitor- fluor lamp (ORDER/DELIVERY STATUS) | 3000 VA |
| Max electr ballast load- Max load at inductive load 30 Vdc (ORDER/DELIVERY STATUS) | 16A |
| Max load illum circ- Parallel compens capacitor- fluor lamp (ORDER/DELIVERY STATUS) | 1800 VA |
| Max load illum circ- capacitor parallel to coil- fluor lamp (ORDER/DELIVERY STATUS) | 2500 VA |
