PLD E 608-CA-MS/4,0/FS AM
PLD E 608-CA-MS/4,0/FS AM 2702305 PHOENIX CONTACT Power cable
$0.00USD
3746 in stock
Key Specifications
:IP40 (plugged in)
Coding:black
Shielded:no
Cable type:H05VV-F3G [PVC]
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IP40 (plugged in) | |
| Coding | black |
| Shielded | no |
| Cable type | H05VV-F3G [PVC] |
| Application | Enclosure lights |
| Head design | Plug |
| Cable length | 4 m |
| Product type | Power cable |
| AWG signal line | 16 |
| Head cable outlet | straight |
| Conductor material | Bare Cu litz wires |
| Nominal current IN | 16 A |
| Nominal voltage UN | 250 V AC |
| Number of positions | 3 |
| Degree of protection | IP20 |
| No. of cable outlets | 1 |
| External sheath, color | orange RAL 2004 |
| Outer sheath, material | PVC |
| External cable diameter | 7.8 mm |
| Material wire insulation | PVC TI2 |
| Insertion/withdrawal cycles | 100 |
| Material for screw connection | not available |
| Wire diameter incl. insulation | 2.7 mm |
| Ambient temperature (operation) | -5 °C ... 40 °C |
| Smallest bending radius, fixed installation | 40 mm |
Product Description

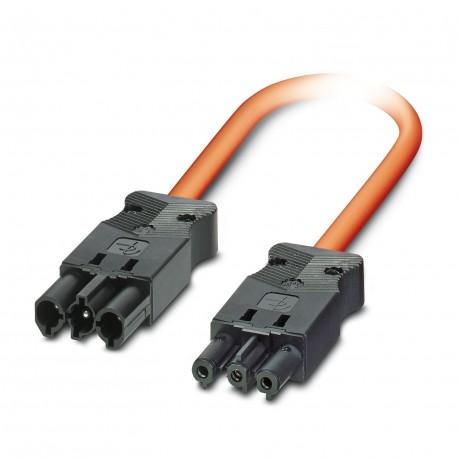

Power cable, 3-pole, PVC, orange RAL 2004, Straight male connector, coding: black, a Straight connection female, coding: black, cable length: 4 m
