PLD E 400 W 375

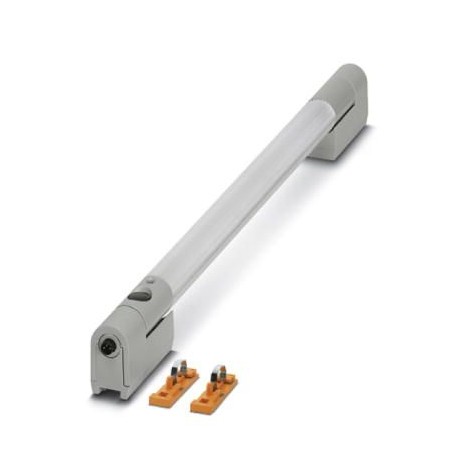

PLD E 400 W 375 2702222 PHOENIX CONTACT LED enclosure light
$0.00USD
4954 in stock
Key Specifications
GTIN:4055626057781
Orderkey:2702222
Catalog page:Page 485 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626057781 |
| Orderkey | 2702222 |
| Catalog page | Page 485 (C-6-2017) |
| Packing unit | 1 pc |
| Width (Note) | 23 mm |
| Height (Note) | 38 mm |
| Length (Note) | 375 mm |
| Country of origin | DE (Germany) |
| (Light properties) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Custom tariff number | 94054039 |
| (Ambient conditions) | Screw fixings available as accessories |
| Supply voltage (General) | 24 V DC |
| Dimensional drawing (Note) | |
| Connection method (General) | M8 connector (snap-in) |
| Power consumption (General) | 3 W |
| Socket (Ambient conditions) | none |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Light color (Connection data) | Neutral white |
| Number of positions (General) | 3 |
| Illumination (Connection data) | max. 845 lx (50 cm distance) |
| Supply voltage range (General) | 19.2 V DC ... 30 V DC |
| Luminous flux (Connection data) | 340 lm (Net luminous flux) |
| Net weight (Ambient conditions) | 170 g |
| Number of LEDs (Connection data) | 12 |
| Degree of protection (Dimensions) | IP20 |
| Mounting type (Ambient conditions) | Clip mounting |
| Mechanical tests (Light properties) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Protection class (Light properties) | III |
| Weight per Piece (excluding packing) | 170.000 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Housing material (Ambient conditions) | Plastic |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Source of light type (Connection data) | LED |
| Color rendering index (Connection data) | 75 |
| Assembly instructions (Ambient conditions) | Magnet attachment available as an accessory |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Color temperature / wavelength (Connection data) | 5000 K |
| Service life, lighting appliance (Connection data) | 50,000 h (L70) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % |
| Connection method (Power supply for module electronics) | M8 connector (snap-in) |
Product Description
LED lamp for control cabinet, 24 V DC, colour temperature 5000 K, length 375 mm, swivel, switchable in series, including mounting accessories
