In Stock Hot Product
PLD E 400-DS-3,0/FS/0,6
PLD E 400-DS-3,0/FS/0,6 2702336 PHOENIX CONTACT Door position switch
$0.00USD
3689 in stock
Key Specifications
GTIN:4055626127453
Orderkey:2702336
Catalog page:Page 485 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626127453 |
| Orderkey | 2702336 |
| Catalog page | Page 485 (C-6-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85365080 |
| Rated current (General) | 3 A |
| Rated voltage (General) | 24 V DC |
| Depth (Key Commercial Data) | 98.3 mm |
| Width (Key Commercial Data) | 31 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 30.5 mm |
| Net weight (Ambient conditions) | 176 g |
| Degree of protection (Dimensions) | IP54 |
| Weight per Piece (excluding packing) | 176.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Note on dimensions (Key Commercial Data) | Without connected cables |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 80 °C |
| Mechanical service life (Ambient conditions) | 10x 106cycles |
| Protection class (Power supply for module electronics) | II |
Product Description

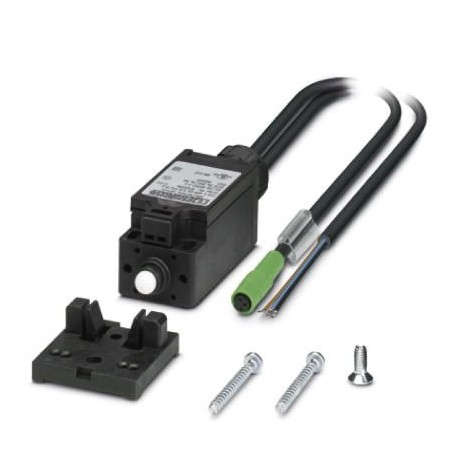

Door position switch with 3 m cable with free end and 0.6 m cable with M8 female connector (snap in), mounting accessories included
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
