PLC-V8C/SC-24DC/BM2

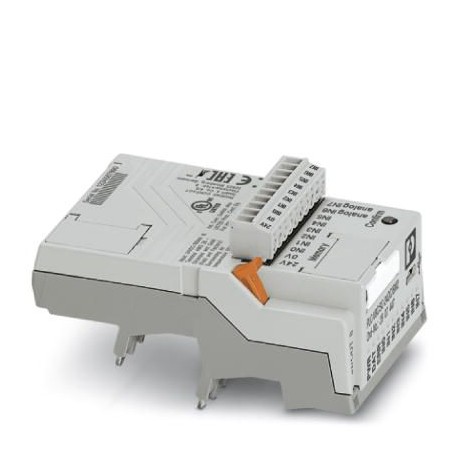

PLC-V8C/SC-24DC/BM2 2907447 PHOENIX CONTACT Controller
$0.00USD
4964 in stock
Key Specifications
GTIN:4055626217833
Orderkey:2907447
(General):0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve)
Catalog page:Page 429 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626217833 |
| Orderkey | 2907447 |
| (General) | 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) |
| Catalog page | Page 429 (C-5-2017) |
| Packing unit | 1 pc |
| Note (General) | Device supply and 8 x inputs |
| Country of origin | DE (Germany) |
| Color (Output data) | gray |
| Custom tariff number | 85371098 |
| (Key Commercial Data) | Surge protection |
| Screw thread (General) | M2 |
| Insulation (Dimensions) | Basic insulation |
| Conformance (Dimensions) | CE-compliant |
| Designation (Dimensions) | Air clearances and creepage distances between the power circuits |
| Depth (Ambient conditions) | 87 mm |
| Stripping length (General) | 7 mm |
| Width (Ambient conditions) | 50 mm |
| Connection method (General) | Screw connection |
| Height (Ambient conditions) | 106 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Input voltage (Power supply) | 24 V DC |
| Operating mode (Output data) | 100% operating factor |
| Number of positions (General) | 10 |
| Status display (Power supply) | Yellow LED |
| Mounting position (Output data) | any |
| Number of connections (General) | 1 |
| Number of inputs (Power supply) | 8 (2 configurable as analog) |
| Degree of pollution (Dimensions) | 2 |
| Rated surge voltage (Dimensions) | 0.8 kV |
| Overvoltage category (Dimensions) | III |
| Degree of protection (Output data) | IP20 |
| Standards/regulations (Dimensions) | DIN EN 50178 |
| Assembly instructions (Output data) | can be plugged onto 8 x PLC-INTERFACE terminal blocks |
| Input voltage (Input data (analog)) | 19 V DC |
| Note (Connection data (PLC V8C bus)) | For connecting the memory module |
| Status display (Key Commercial Data) | Green LED |
| Supply voltage (Key Commercial Data) | 24 V DC |
| Weight per Piece (excluding packing) | 136.000 g |
| Conductor cross section AWG (General) | 28 ... 16 |
| Rated insulation voltage (Dimensions) | 50 V |
| Realtime clock accuracy (Output data) | ±2 s/d |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Input resistance (Input data (analog)) | < 100 mΩ |
| Number of inputs (Input data (analog)) | ≤ 8 |
| Signal level "0" signal (Power supply) | < 5 V |
| Signal level "1" signal (Power supply) | > 11 V |
| Conductor cross section solid (General) | 0.14 mm² ... 1.5 mm² |
| Description of the input (Power supply) | EN 61131-2, type 3 |
| Input current "0" signal (Power supply) | < 1 mA |
| Input current "1" signal (Power supply) | typ. 2.5 mA |
| Input resistance (Input data (digital)) | > 3.5 kΩ |
| Number of inputs (Input data (digital)) | 2 (IN6 and IN7 are configurable as analog) |
| Protective circuit (Key Commercial Data) | Reverse polarity protection |
| Realtime clock buffer time (Output data) | 96 h (Capacitor) |
| Conductor cross section flexible (General) | 0.14 mm² ... 1.5 mm² |
| Input voltage range (Input data (digital)) | 0 V ... 10 V |
| Supply voltage range (Key Commercial Data) | 19.2 V DC ... 26.4 V DC |
| Nominal current (Input data (PLC-INTERFACE)) | 9 mA |
| Description of the input (Input data (analog)) | technical data depends on the PLC-INTERFACE terminal block used |
| Number of outputs (Input data (PLC-INTERFACE)) | ≤ 8 |
| Connection method (Connection data (PLC V8C bus)) | S-PORT (socket) |
| Maximum input current at UN (Key Commercial Data) | 160 mA |
| Typical current consumption (Input data (analog)) | 4 mA |
| Typical input current at UN (Key Commercial Data) | 40 mA |
| Nominal output voltage (Input data (PLC-INTERFACE)) | 24 V DC |
| Number of positions (Connection data (PLC V8C bus)) | 12 |
| Number of connections (Connection data (PLC V8C bus)) | 1 |
| Connection method (Connection data (INTERFACE system)) | Insulation displacement connection |
| Number of positions (Connection data (INTERFACE system)) | 4 |
| Ambient temperature (operation) (Connection data (memory)) | -20 °C ... 50 °C |
| Number of connections (Connection data (INTERFACE system)) | 1 |
| Stripping length (Connection data (programming interface)) | 6 mm |
| Connection method (Connection data (programming interface)) | Spring-cage connection |
| Number of positions (Connection data (programming interface)) | 3 |
| Connection method (Connection data (supply and digital inputs)) | Micro USB type B |
| Number of connections (Connection data (programming interface)) | 1 |
| Ambient temperature (storage/transport) (Connection data (memory)) | -20 °C ... 70 °C |
| Number of connections (Connection data (supply and digital inputs)) | 1 |
| Conductor cross section AWG (Connection data (programming interface)) | 26 ... 20 |
| Conductor cross section solid (Connection data (programming interface)) | 0.14 mm² ... 0.5 mm² |
| Max. permissible relative humidity (operation) (Connection data (memory)) | 95 % |
| Conductor cross section flexible (Connection data (programming interface)) | 0.2 mm² ... 0.5 mm² |
Product Description
PLC logic basic module, 2nd generation, with 16 I/O, pluggable into 8 digital or analogue PLC-INTERFACE terminals, expandable to 48 I/O, real-time clock, Micro-USB female connector, housing for memory
