PLC-RSC-230UC/21/C1D2

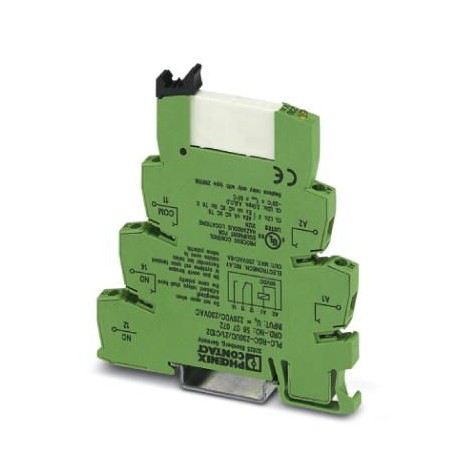

PLC-RSC-230UC/21/C1D2 5607072 PHOENIX CONTACT Relay Module
$0.00USD
4418 in stock
Key Specifications
GTIN:4046356683999
Note:Made to Order (non-returnable)
Orderkey:5607072
(General):2x 0.5 mm² ... 1.5 mm² ()
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356683999 |
| Note | Made to Order (non-returnable) |
| Orderkey | 5607072 |
| (General) | 2x 0.5 mm² ... 1.5 mm² () |
| (Coil side) | 1500 VA (for 250 V AC) |
| Catalog page | Page 413 (C-7-2015) |
| Depth (Note) | 94 mm |
| Packing unit | 10 pc |
| Width (Note) | 6.2 mm |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85364900 |
| (Ambient conditions) | 3 mA (at UN= 220 V DC) |
| Screw thread (General) | M 3 |
| UL, USA (Contact side) | Class I, Zone 2, AEx nA nC IIC T6 |
| Contact type (Coil side) | 1 PDT |
| Connection name (General) | Coil side |
| UL, Canada (Contact side) | Class I, Zone 2, Ex nA nC IIC Gc T6 X |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Contact material (Coil side) | AgSnO |
| (Connection data input side) | 2x 0.5 mm² ... 1.5 mm² () |
| Operating mode (Contact side) | 100% operating factor |
| UL, USA/Canada (Contact side) | Class I, Div. 2, Groups A, B, C, D |
| (Connection data output side) | EN 50178 |
| Net weight (SAP) (Contact side) | 40.01 g |
| Mounting position (Contact side) | any |
| Maximum inrush current (Coil side) | 10 A (4 s) |
| Min. switching current (Coil side) | 10 mA |
| Type of switch contact (Coil side) | Single contact |
| Degree of protection (Contact side) | IP20 (Relay base) |
| Assembly instructions (Contact side) | In rows with zero spacing |
| Weight per Piece (excluding packing) | 40.010 g |
| Conductor cross section AWG (General) | 26 ... 14 |
| Maximum switching voltage (Coil side) | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Minimum switching voltage (Coil side) | 12 V AC/DC |
| UL, USA (Connection data output side) | Class I, Zone 2, AEx nA nC IIC T6 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mechanical service life (Contact side) | 2x 107cycles |
| Conductor cross section solid (General) | 0.14 mm² ... 2.5 mm² |
| Limiting continuous current (Coil side) | 6 A |
| Protective circuit (Ambient conditions) | Bridge rectifier Bridge rectifier |
| UL, Canada (Connection data output side) | Class I, Zone 2, Ex nA nC IIC Gc T6 X |
| Conformance (Connection data output side) | CE-compliant |
| Designation (Connection data output side) | Standards/regulations |
| Screw thread (Connection data input side) | M3 |
| Typical release time (Ambient conditions) | 15 ms |
| Conductor cross section flexible (General) | 0.14 mm² ... 2.5 mm² |
| Typical response time (Ambient conditions) | 7 ms |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Connection name (Connection data input side) | Contact side |
| UL, USA/Canada (Connection data output side) | Class I, Div. 2, Groups A, B, C, D |
| Nominal input voltage UN (Ambient conditions) | 230 V AC |
| Stripping length (Connection data input side) | 8 mm |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Connection method (Connection data input side) | Screw connection |
| Operating voltage display (Ambient conditions) | Yellow LED |
| Typical input current at UN (Ambient conditions) | 3.2 mA (at UN= 230 V AC) |
| Degree of pollution (Connection data output side) | 3 |
| Interrupting rating (ohmic load) max. (Coil side) | 140 W (at 24 V DC) |
| Overvoltage category (Connection data output side) | III |
| Standards/regulations (Connection data output side) | IEC 60664 |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Test voltage relay winding/relay contact (Contact side) | 4 kV AC (50 Hz, 1 min.) |
| Conductor cross section AWG (Connection data input side) | 26 ... 14 |
| Conductor cross section solid (Connection data input side) | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible (Connection data input side) | 0.14 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 (Connection data output side) | V0 |
