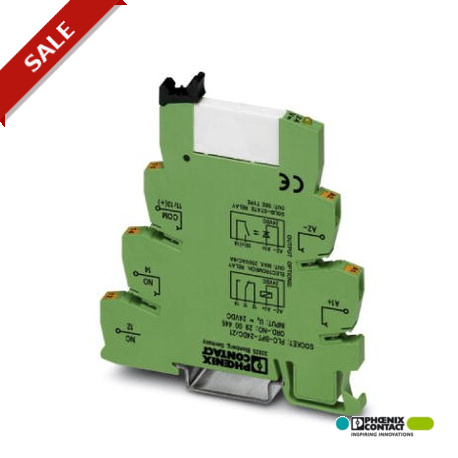

PLC-RPT-60DC/21AU
PLC-RPT- 60DC/21AU 2900309 PHOENIX CONTACT PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal block w..
$0.00USD
4303 in stock
Key Specifications
:Free-wheeling diode Damping diode
Note:the following values are applicable if a gold layer is destroyed
Depth:94 mm
Width:6.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Free-wheeling diode Damping diode | |
| Note | the following values are applicable if a gold layer is destroyed |
| Depth | 94 mm |
| Width | 6.2 mm |
| Height | 80 mm |
| Designation | Standards/regulations |
| Contact type | 1 PDT |
| Operating mode | 100% operating factor |
| Connection name | Coil side |
| Contact material | AgSnO, hard gold-plated |
| Pollution degree | 3 |
| Stripping length | 8 mm |
| Connection method | Push-in connection |
| Mounting position | any |
| Protective circuit | Protection against polarity reversal Polarity protection diode |
| Degree of protection | RT III (Relay) |
| Overvoltage category | III |
| Typical release time | 8 ms |
| Assembly instructions | In rows with zero spacing |
| Standards/regulations | IEC 60664 |
| Typical response time | 5 ms |
| Maximum inrush current | 50 mA |
| Min. switching current | 1 mA (at 24 V) |
| Mechanical service life | 2 x 107cycles |
| Nominal input voltage UN | 60 V DC |
| Maximum switching voltage | 30 V AC |
| Minimum switching voltage | 100 mV (at 10 mA) |
| Operating voltage display | Yellow LED |
| Conductor cross section AWG | 26 ... 14 |
| Limiting continuous current | 50 mA |
| Typical input current at UN | 4.8 mA |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Power dissipation for nominal condition | 0.29 W |
| Test voltage relay winding/relay contact | 4 kV AC (50 Hz, 1 min.) |
| Switching capacity in acc. with DIN VDE 0660/IEC 60947 | 2 A (at 24 V, DC13) |
