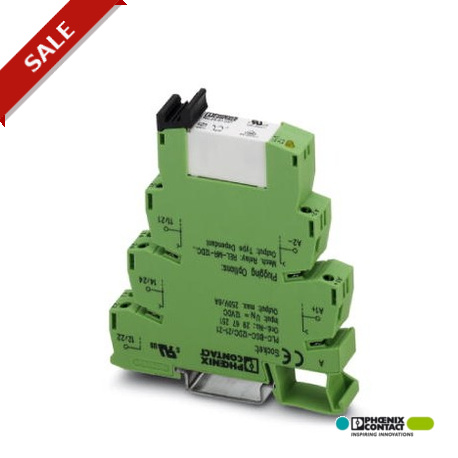

PLC-RPT-48DC/21-21
PLC-RPT- 48DC/21-21 2900333 PHOENIX CONTACT PLC-INTERFACE, consisting of PLC-BPT.../21-21 basic terminal blo..
$0.00USD
4475 in stock
Key Specifications
:Free-wheeling diode Damping diode
Depth:94 mm
Width:14 mm
Height:80 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Free-wheeling diode Damping diode | |
| Depth | 94 mm |
| Width | 14 mm |
| Height | 80 mm |
| Designation | Standards/regulations |
| Contact type | 2 PDT |
| Operating mode | 100% operating factor |
| Connection name | Coil side |
| Contact material | AgNi |
| Pollution degree | 2 |
| Stripping length | 8 mm |
| Connection method | Push-in connection |
| Mounting position | any |
| Protective circuit | Protection against polarity reversal Polarity protection diode |
| Degree of protection | RT III (Relay) |
| Overvoltage category | III |
| Typical release time | 10 ms |
| Assembly instructions | In rows with zero spacing |
| Standards/regulations | IEC 60664 |
| Typical response time | 8 ms |
| Maximum inrush current | 15 A (300 ms) |
| Min. switching current | 10 mA (At 5 V) |
| Mechanical service life | 3 x 107cycles |
| Nominal input voltage UN | 48 V DC |
| Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Minimum switching voltage | 5 V AC/DC (at 10 mA) |
| Operating voltage display | Yellow LED |
| Conductor cross section AWG | 26 ... 14 |
| Limiting continuous current | 6 A |
| Typical input current at UN | 20 mA |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Rated surge voltage/insulation | 6 kV (safe isolation: control side / contact side) |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Power dissipation for nominal condition | 0.96 W |
| Switching capacity in acc. with DIN VDE 0660/IEC 60947 | 2 A (at 24 V, DC13) |
Product Description
PLC-INTERFACE, consists of a PLC-BPT.../21-21 base terminal block with push-in connection and plug-in miniature relay with power contact, for installation on NS 35/7.5 symmetrical rail, 2 inverter con
