PLC-OSC-LPE-24DC/48DC/100

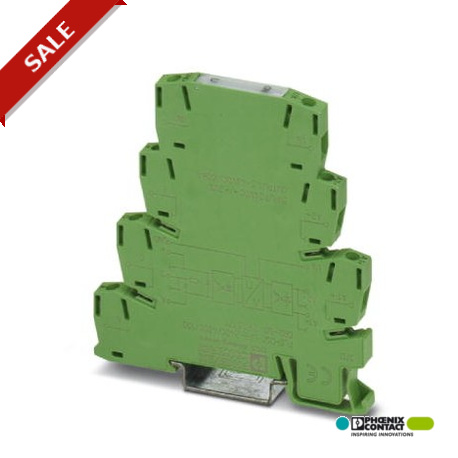

PLC-OSC-LPE-24DC/48DC/100 2903171 PHOENIX CONTACT Single-channel pulse expansion module, input: 24 V DC, out..
$0.00USD
4758 in stock
Key Specifications
:Surge protection
Depth:86 mm
Width:6.2 mm
Height:80 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Surge protection | |
| Depth | 86 mm |
| Width | 6.2 mm |
| Height | 80 mm |
| Designation | Air clearances and creepage distances between the power circuits |
| Operating mode | 100% operating factor |
| Output circuit | 3-conductor, ground-referenced |
| Status display | Yellow LED |
| Connection name | Input side |
| Pollution degree | 2 |
| Connection method | Screw connection |
| Mounting position | any |
| Type of protection | Protection against polarity reversal |
| Degree of protection | IP20 |
| Output voltage range | 3 V DC ... 48 V DC |
| Overvoltage category | II |
| Assembly instructions | In rows with zero spacing |
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V DC |
| Surge voltage protection | > 33 V DC |
| Operating voltage display | Green LED |
| Test voltage input/output | 2.5 kVrms(50 Hz, 1 min.) |
| Conductor cross section AWG | 26 ... 14 |
| Limiting continuous current | 100 mA |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Voltage drop at max. limiting continuous current | < 1 V DC |
| "0" signal switching threshold in reference to UC | < 0.4 |
| "1" signal switching threshold in reference to UC | > 0.8 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DIP switch settings:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
