PLC-OSC-24DC/ 24DC/ 2

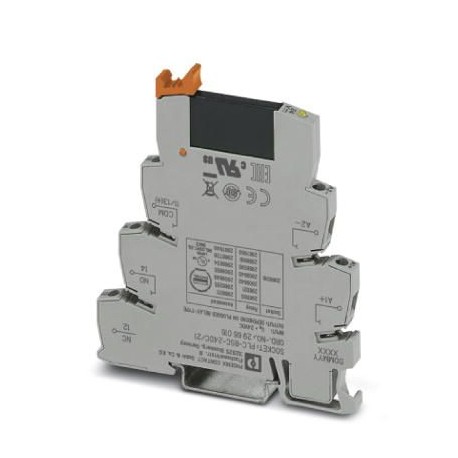

PLC-OSC- 24DC/ 24DC/ 2 2966634 PHOENIX CONTACT Solid-state relay module
$0.00USD
3303 in stock
Key Specifications
GTIN:4017918130480
Orderkey:2966634
(General):EN 50178
Catalog page:Page 377 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918130480 |
| Orderkey | 2966634 |
| (General) | EN 50178 |
| Catalog page | Page 377 (C-5-2017) |
| Depth (Note) | 94 mm |
| Packing unit | 10 pc |
| Width (Note) | 6.2 mm |
| (Input data) | Surge protection |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| (Connection data 2) | EN 50178 |
| Custom tariff number | 85364190 |
| Insulation (General) | Basic insulation |
| (Ambient conditions) | Damping diode |
| Designation (General) | Standards/regulations |
| Screw thread (Output data) | M3 |
| Output circuit (Input data) | 2-wire, floating |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Output data) | Input side |
| Degree of pollution (General) | 2 |
| Overvoltage category (General) | III |
| Stripping length (Output data) | 8 mm |
| Connection method (Output data) | Screw connection |
| Designation (Connection data 2) | Standards/regulations |
| Standards/regulations (General) | IEC 60664 |
| Type of protection (Input data) | Reverse polarity protection |
| Screw thread (Connection data 1) | M3 |
| Output voltage range (Input data) | 3 V DC ... 33 V DC |
| Operating mode (Connection data 2) | 100% operating factor |
| Connection name (Connection data 1) | Output side |
| Maximum inrush current (Input data) | 15 A (10 ms) |
| Stripping length (Connection data 1) | 8 mm |
| Weight per Piece (excluding packing) | 35.500 g |
| Connection method (Connection data 1) | Screw connection |
| Mounting position (Connection data 2) | any |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of pollution (Connection data 2) | 2 |
| Type of protection (Ambient conditions) | Reverse polarity protection |
| Input voltage range (Ambient conditions) | 19.2 V DC ... 28.8 V DC |
| Limiting continuous current (Input data) | 3 A (see derating curve) |
| Overvoltage category (Connection data 2) | III |
| Assembly instructions (Connection data 2) | In rows with zero spacing |
| Conductor cross section AWG (Output data) | 26 ... 14 |
| Protective circuit/component (Input data) | Polarity protection diode |
| Standards/regulations (Connection data 2) | IEC 60664 |
| Connection in acc. with standard (General) | CUL |
| Typical response time (Ambient conditions) | 20 µs (at UN) |
| Typical turn-off time (Ambient conditions) | 300 µs (at UN) |
| Conductor cross section solid (Output data) | 0.14 mm² ... 2.5 mm² |
| Transmission frequency (Ambient conditions) | 300 Hz |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Nominal input voltage UN (Ambient conditions) | 24 V DC |
| Test voltage input/output (Connection data 2) | 2.5 kV (50 Hz, 1 min.) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible (Output data) | 0.14 mm² ... 2.5 mm² |
| Operating voltage display (Ambient conditions) | Yellow LED |
| Conductor cross section AWG (Connection data 1) | 26 ... 14 |
| Flammability rating according to UL 94 (General) | V0 |
| Typical input current at UN (Ambient conditions) | 8.5 mA |
| Conductor cross section solid (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Protective circuit/component (Ambient conditions) | Polarity protection diode |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Conductor cross section flexible (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 (Connection data 2) | V0 |
| Input voltage range in reference to UN (Ambient conditions) | 0.8 ... 1.2 |
| Power dissipation for nominal condition (Ambient conditions) | 0.2 W |
| Voltage drop at max. limiting continuous current (Input data) | ≤ 200 mV |
| Switching threshold "0" signal in reference to UN (Ambient conditions) | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN (Ambient conditions) | ≥ 0.8 |
Product Description
PLC-INTERFACE, consisting of PLC-BSC.../21 base terminal block with screw connection and plug-in miniature solid-state relay, for rail mounting NS 35/7.5, 1 closing contact, input: 24 V DC, output: 3-
