PLC-OSC-24DC/ 24DC/100KHZ-G

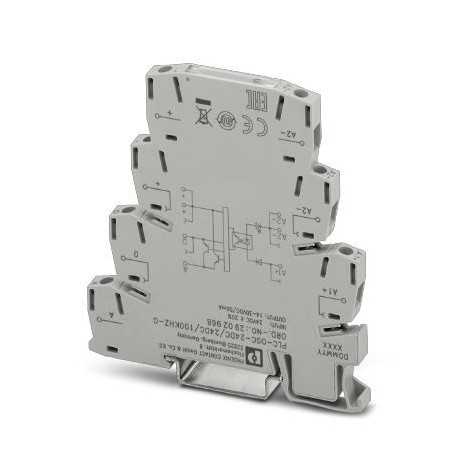

PLC-OSC- 24DC/ 24DC/100KHZ-G 2902968 PHOENIX CONTACT Solid-state relay module
$0.00USD
4021 in stock
Key Specifications
GTIN:4046356702027
Orderkey:2902968
Catalog page:Page 411 (C-5-2017)
Depth (Note):86 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356702027 |
| Orderkey | 2902968 |
| Catalog page | Page 411 (C-5-2017) |
| Depth (Note) | 86 mm |
| Packing unit | 1 pc |
| Width (Note) | 6.2 mm |
| (Input data) | Surge protection |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85364900 |
| Insulation (General) | Basic insulation |
| (Ambient conditions) | Surge protection |
| Designation (General) | Air clearances and creepage distances between the power circuits |
| Designation (Input data) | Output data |
| Screw thread (Output data) | M3 |
| Output circuit (Input data) | 3-conductor push-pull, ground referenced |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Output data) | Input side |
| Degree of pollution (General) | 2 |
| Rated surge voltage (General) | 0.5 kV |
| Overvoltage category (General) | II |
| Quiescent current (Input data) | 15 mA |
| Stripping length (Output data) | 8 mm |
| Connection method (Output data) | Screw connection |
| Designation (Connection data 2) | Air clearances and creepage distances between the power circuits |
| Standards/regulations (General) | DIN EN 50178 |
| Type of protection (Input data) | Reverse polarity protection |
| Screw thread (Connection data 1) | M3 |
| Degree of protection (Dimensions) | IP20 |
| Output voltage range (Input data) | 14 V DC ... 30 V DC |
| Operating mode (Connection data 2) | 100% operating factor |
| Rated insulation voltage (General) | 50 V DC |
| Connection name (Connection data 1) | Output side |
| Stripping length (Connection data 1) | 8 mm |
| Weight per Piece (excluding packing) | 36.530 g |
| Connection method (Connection data 1) | Screw connection |
| Mounting position (Connection data 2) | any |
| Surge voltage protection (Input data) | > 35 V |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of pollution (Connection data 2) | 2 |
| Type of protection (Ambient conditions) | Reverse polarity protection |
| Input voltage range (Ambient conditions) | 19.2 V DC ... 28.8 V DC |
| Limiting continuous current (Input data) | 50 mA |
| Overvoltage category (Connection data 2) | II |
| Assembly instructions (Connection data 2) | In rows with zero spacing |
| Conductor cross section AWG (Output data) | 26 ... 14 |
| Standards/regulations (Connection data 2) | DIN EN 50178 |
| Typical response time (Ambient conditions) | 1 µs |
| Typical turn-off time (Ambient conditions) | 2 µs |
| Conductor cross section solid (Output data) | 0.14 mm² ... 2.5 mm² |
| Transmission frequency (Ambient conditions) | 100 kHz |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Nominal input voltage UN (Ambient conditions) | 24 V DC |
| Surge voltage protection (Ambient conditions) | > 33 V |
| Test voltage input/output (Connection data 2) | 2.5 kVrms(50 Hz, 1 min.) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible (Output data) | 0.14 mm² ... 2.5 mm² |
| Operating voltage display (Ambient conditions) | Yellow LED |
| Conductor cross section AWG (Connection data 1) | 26 ... 14 |
| Typical input current at UN (Ambient conditions) | 8 mA |
| Conductor cross section solid (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 75 °C |
| Conductor cross section flexible (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Input voltage range in reference to UN (Ambient conditions) | 0.8 ... 1.2 |
| Power dissipation for nominal condition (Ambient conditions) | 0.19 W |
| Voltage drop at max. limiting continuous current (Input data) | < 2.2 V |
| Switching threshold "0" signal in reference to UN (Ambient conditions) | < 0.4 |
| Switching threshold "1" signal in reference to UN (Ambient conditions) | > 0.8 |
Product Description
Eingabe-Solid-State-Relais, mit Gleichspannungsausgang-Gegentakt, Übertragungsfrequenz: 100 kHz, mit Leuchtanzeige und Schutzbeschaltung im Ein- und Ausgangskreis, Eingang: 24 V DC, Ausgang: 14 - 30 V
