PLC-OSC-120AC/300DC/ 1

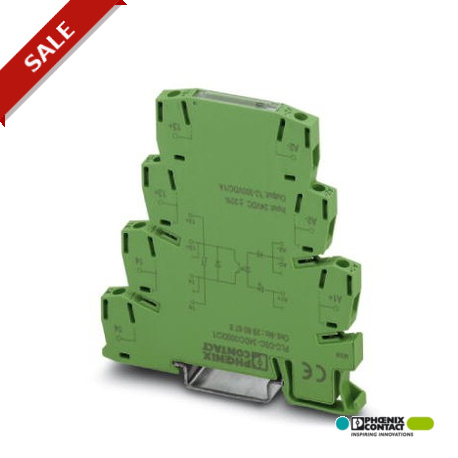

PLC-OSC-120AC/300DC/ 1 2980717 PHOENIX CONTACT PLC-INTERFACE, integrated solid-state relay, with screw conne..
$0.00USD
4328 in stock
Key Specifications
:Surge protection
Depth:86 mm
Width:6.2 mm
Height:80 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Surge protection | |
| Depth | 86 mm |
| Width | 6.2 mm |
| Height | 80 mm |
| Designation | Output data |
| Screw thread | M3 |
| Operating mode | 100% operating factor |
| Connection name | Input side |
| Pollution degree | 2 |
| Stripping length | 8 mm |
| Connection method | Screw connection |
| Mounting position | any |
| Type of protection | Bridge rectifier |
| Output voltage range | 12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Overvoltage category | III |
| Assembly instructions | In rows with zero spacing |
| Standards/regulations | IEC 60664 |
| Typical response time | 19 ms |
| Typical turn-off time | 6 ms |
| Transmission frequency | 10 Hz |
| Nominal input voltage UN | 120 V AC |
| Rated insulation voltage | 300 V |
| Operating voltage display | Yellow LED |
| Conductor cross section AWG | 26 ... 14 |
| Limiting continuous current | 1 A (see derating curve) |
| Typical input current at UN | 5.6 mA |
| Protective circuit/component | Bridge rectifier |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Rated surge voltage/insulation | 4 kV / basic insulation |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Voltage drop at max. limiting continuous current | < 500 mV |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
Product Description
INTERFACE PLC, integrated solid-state relay, screw connection, for symmetrical rail mounting NS 35/7.5, input: 120 V AC, output: 12-300 V DC/1 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
