PLC-OPT-LPE-24DC/48DC/100

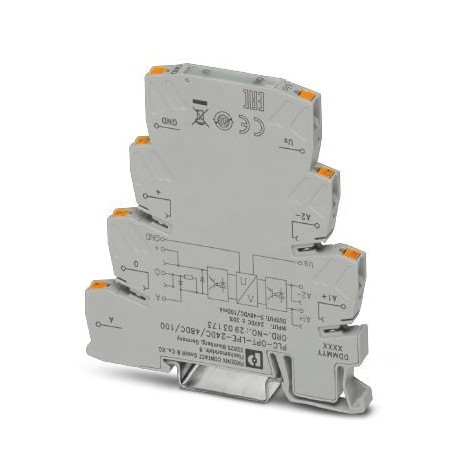

PLC-OPT-LPE-24DC/48DC/100 2903173 PHOENIX CONTACT Timer module
$0.00USD
3900 in stock
Key Specifications
GTIN:4046356727860
Orderkey:2903173
Catalog page:Page 422 (C-5-2017)
Depth (Note):86 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356727860 |
| Orderkey | 2903173 |
| Catalog page | Page 422 (C-5-2017) |
| Depth (Note) | 86 mm |
| Packing unit | 1 pc |
| Width (Note) | 6.2 mm |
| (Input data) | Free running |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85371098 |
| Insulation (General) | Basic insulation |
| (Ambient conditions) | Surge protection |
| Designation (General) | Air clearances and creepage distances between the power circuits |
| Output circuit (Input data) | 3-conductor, ground-referenced |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Output data) | Input side |
| Degree of pollution (General) | 2 |
| Rated surge voltage (General) | 0.5 kV |
| Overvoltage category (General) | II |
| Connection method (Output data) | Push-in connection |
| Designation (Connection data 2) | Air clearances and creepage distances between the power circuits |
| Standards/regulations (General) | DIN EN 50178 |
| Type of protection (Input data) | Reverse polarity protection |
| Degree of protection (Dimensions) | IP20 |
| Output voltage range (Input data) | 3 V DC ... 48 V DC |
| Operating mode (Connection data 2) | 100% operating factor |
| Rated insulation voltage (General) | 50 V DC |
| Connection name (Connection data 1) | Output side |
| Status display (Ambient conditions) | Yellow LED |
| Weight per Piece (excluding packing) | 32.350 g |
| Connection method (Connection data 1) | Push-in connection |
| Mounting position (Connection data 2) | any |
| Surge voltage protection (Input data) | > 54 V DC |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of pollution (Connection data 2) | 2 |
| Type of protection (Ambient conditions) | Reverse polarity protection |
| Input voltage range (Ambient conditions) | 19.2 V DC ... 28.8 V DC |
| Limiting continuous current (Input data) | 100 mA |
| Overvoltage category (Connection data 2) | II |
| Assembly instructions (Connection data 2) | In rows with zero spacing |
| Conductor cross section AWG (Output data) | 26 ... 14 |
| Standards/regulations (Connection data 2) | DIN EN 50178 |
| Conductor cross section solid (Output data) | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Surge voltage protection (Ambient conditions) | > 33 V DC |
| Test voltage input/output (Connection data 2) | 2.5 kVrms(50 Hz, 1 min.) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible (Output data) | 0.14 mm² ... 2.5 mm² |
| Operating voltage display (Ambient conditions) | Green LED |
| Conductor cross section AWG (Connection data 1) | 26 ... 14 |
| Rated actuating voltage UC (Ambient conditions) | 24 V DC |
| Conductor cross section solid (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 75 °C |
| Conductor cross section flexible (Connection data 1) | 0.14 mm² ... 2.5 mm² |
| Rated control supply current IS (Ambient conditions) | 13 mA (Input low, output low) |
| Power dissipation for nominal condition (Ambient conditions) | 0.07 W |
| Rated control circuit supply voltage US (Ambient conditions) | 24 V DC |
| Voltage drop at max. limiting continuous current (Input data) | < 1 V DC |
| "0" signal switching threshold in reference to UC (Ambient conditions) | < 0.4 |
| "1" signal switching threshold in reference to UC (Ambient conditions) | > 0.8 |
Product Description
1-channel pulse extension module, input: 24 V DC, output: 3-48 V DC/100 mA, power: 24 V DC, push-in connection
