PLC-BSP-TTL/1

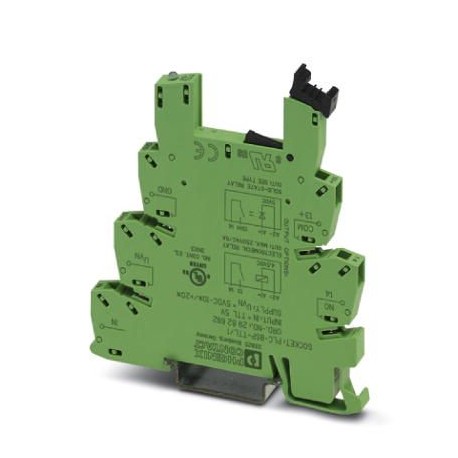

PLC-BSP-TTL/1 2982692 PHOENIX CONTACT Relay base
$0.00USD
4056 in stock
Key Specifications
GTIN:4046356155229
Note:Made to Order (non-returnable)
Orderkey:2982692
Catalog page:Page 356 (C-7-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356155229 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2982692 |
| Catalog page | Page 356 (C-7-2013) |
| Depth (Note) | 94 mm |
| Packing unit | 10 pc |
| Width (Note) | 6.2 mm |
| Height (Note) | 80 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (Input data) | Input side |
| Stripping length (Input data) | 8 mm |
| Connection method (Input data) | Spring-cage connection |
| Color (Connection data, output side) | green |
| Weight per Piece (excluding packing) | 26.550 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Conductor cross section AWG (Input data) | 26 ... 14 |
| Conductor cross section solid (Input data) | 0.14 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | CUL |
| Transmission frequency (Ambient conditions) | 1000 Hz |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section flexible (Input data) | 0.14 mm² ... 2.5 mm² |
| Connection name (Connection data, input side) | Output side |
| Nominal input voltage UN (Ambient conditions) | 5 V DC (TTL) |
| Operating mode (Connection data, output side) | 100% operating factor |
| Surge voltage protection (Ambient conditions) | > 6.5 V |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Stripping length (Connection data, input side) | 8 mm |
| Connection method (Connection data, input side) | Spring-cage connection |
| Rated actuating current IC (Ambient conditions) | 2.5 mA |
| Rated actuating voltage UC (Ambient conditions) | 5 V DC (TTL) |
| Flammability rating according to UL 94 (General) | V0 |
| Mounting position (Connection data, output side) | any |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Assembly instructions (Connection data, output side) | In rows with zero spacing |
| Rated control supply current IS (Ambient conditions) | 11.5 mA |
| Voltage range with reference to UC (Ambient conditions) | 0.9 ... 1.2 |
| Voltage range with reference to US (Ambient conditions) | 0.9 ... 1.2 |
| Conductor cross section AWG (Connection data, input side) | 26 ... 14 |
| Conductor cross section solid (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
| Rated control circuit supply voltage US (Ambient conditions) | 5 V DC |
| Conductor cross section flexible (Connection data, input side) | 0.14 mm² ... 2.5 mm² |
| Switching level 0 signal ("L") (TTL signal) (Ambient conditions) | < 0.8 V DC |
| Switching level 1 signal ("H") (TTL signal) (Ambient conditions) | > 2 V DC |
